Armored Purge Flow Meter Pressure Measurement Gauge Including Permanent-Flow Valve;

Product Description

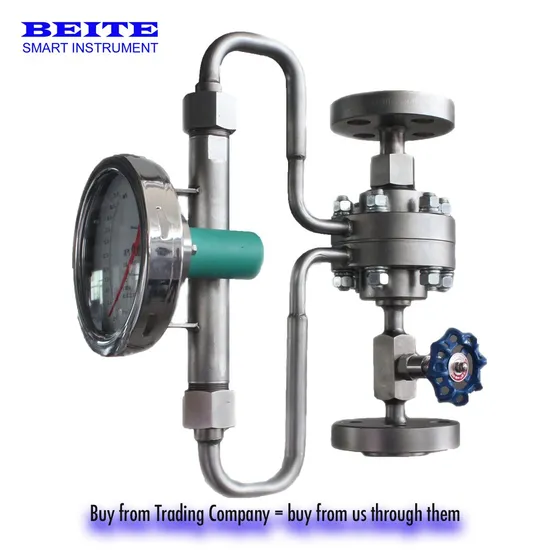

Product Description Armored purgemeter designed to meter small gas and liquid flows. This meter is especially suited for applications with cloudy, opaque or aggressive fluids in chemical and pharmaceutical industries, gas analyzers, process systems, well systems and wherever glass metering tubes cannot be used for safety reasons.
It is consists of variable area flowmeter with metallic cone and constant flow rate control valve, it can realize the functions of output setting, controling and indicating of constant flow rate in the system,insure the outlet flow rate constantly when inlet or outlet pressure changed.
△ Superior economic performance.Location indication, goods attractive in price and quality, operating conveniently.
△ imple structure, reliable performance.Purely mechanical structure, needn't power supply, less component, maintain easily.
△ Little pressure loss.The measuring principle determined to less pressure loss, it suitable for measuring the flow rate in the condition with little operating pressure.
△ Precise measurement and control.Congregate the function of measuring and controlling, the adjustable valve by special design handled smooth, high sensitivity.
Product Parameters Model: F60 series
Measuring range: water (20 ºC) 0.3~4000L/h
air (20ºC 101325Pa), 5~110000L/h
Range scale: 10:1
Accuracy: 2.5, 4
Min. requirement psid: 0.05 MPa
Max.controllable psid: 0.5 MPa
Max.operating pressure: 4.0 MPa (or be requested)
Fluid temperature: (-80~+ 150)ºC
Ambient temperature: (-25~+ 65)ºC
Connect type: screw or flange
