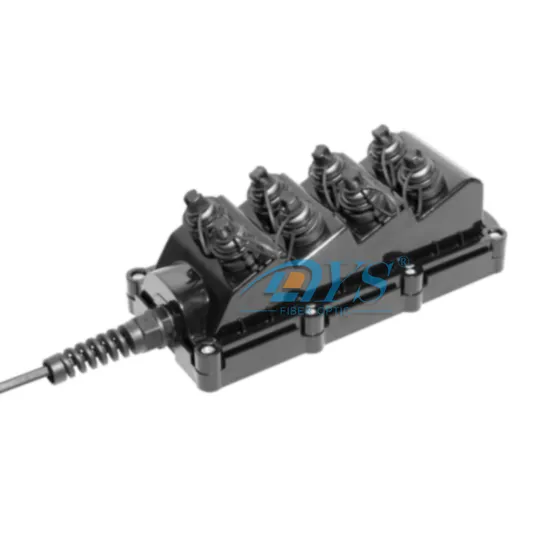

FTTX/Ftta/FTTH Solution IP68 Outdoor Waterproof Mst Box Splitter Enclosure Termination Box Naps Fiber Optic Cable Distribution Terminal Nap Box
| US$28.00-180.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
FTTX Enclosure Box
Certification
ISO, RoHS
Condition
New
Connector Type
Odlc/Odc/Fullax/Odva/Mini Sc/Optitap
Waterproof
IP68
Adapter Type
Mini Sc, Odva, Optitap
Temperature Range
-40~85ºC
Cable Strength Member
Armoured or Non-Armoured
Cable Type
Hybrid or Non-Hybrid
High Compatibility
Can Be Assembled Odva, H Connector(Optitap Compati
Number of PLC
1to 2PCS
Number of Fusion Protection Steeve
1to 24PCS
Fire Protection Rating
UL94-V0
Transport Package
Carton Box
Specification
280x120x85mm(8Core)
Trademark
DYS/OEM
Origin
China
HS Code
8517622990
Production Capacity
5000PCS/Day
Product Description
FTTX/Ftta/FTTH Solution IP68 Outdoor Waterproof MST BOX Splitter Enclosure Termination Box NAPS Fiber Optic Cable Distribution Terminal NAP boxFTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Applications
FTTH field
FTTA field
Trunk cable connecting
Prospecting or communication
Features
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
Product Parameters
| Dimensions(LxWxH) | 200x120x85mm(4Core) | 280x120x85mm(8Core) |
| Ingress Protection | IP68 | |
| Working Temperature | -40~85ºC | |
| Cable Strength Member | Armoured or Non-armoured | |
| Cable Type | Hybrid or non-hybrid | |
| Round Cable OD | 5.0mm to 14.0mm | |
| Flat Cable Dimension | 4.6x8.9mm | |
| Cable Jacket Material | LSZH,PE or TPU | |
| Bending Radius | 20D | |
| Cable Crush Resistance | 200N/cm long term | |
| Tensile Strength | 1200N long term | |
| UV Resistance | ISO 4892-3 | |
| Fire Protection Rating | UL94-V0 | |
| Number of PLC | 1to 2pcs | |
| Number of Fusion Protection Steeve | 1to 24pcs | |
Configuration
| Standard | Optional | |
| Input Hole | PG13.5 | MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized |
| Output Hole | MINI SC,H connector | MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized |
| Extend Hole | Closed | MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized |
