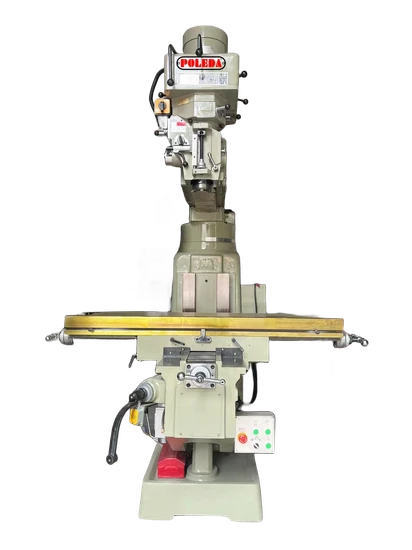

5s High Quality Vertical Turret Milling Machine Z-Axis Automatic Lifting (NT40 spindle)

Product Description

Experience unmatched precision and versatility with the 5M Vertical Metal Turret Milling Machine, a true testament to cutting-edge engineering.
Discover why we are recognized as the most professional manufacturer of universal milling machines in China, setting benchmarks for quality and innovation.
In our journey, there is no pinnacle of perfection-only relentless pursuit of betterment in every aspect.
Product Description
Product Parameters
Product Introduction
The turret milling machine, also known as a rocker arm milling machine, offers unparalleled versatility for various milling tasks. Characterized by its compact structure and high flexibility, this machine allows the milling head to rotate 90 degrees horizontally and 45 degrees vertically. Its rocker arm extends telescopically and rotates 360 degrees on the horizontal plane, significantly expanding its effective working range.
Composition
Crafted from high-grade cast iron, the body of the universal radial milling machine ensures exceptional precision and durability, thanks to artificial aging treatment. The lifting platform features rectangular guide rails, providing numerous contact surfaces and robust stability. Enhanced through high-frequency treatment and fine grinding, the plastinated slide guarantees superior motion accuracy and longevity. The spindle, forged from chrome-molybdenum alloy and equipped with precision angular contact bearings, undergoes tempering and fine grinding to deliver formidable cutting force and high precision.
Applications
The turret milling machine is a lightweight, universal metal cutting marvel, boasting both vertical and horizontal milling capabilities. Ideal for machining flat, inclined, grooved, and spline surfaces on medium and small parts, it finds extensive use across machining, mold making, instrumentation, and other industries.
Turret Milling Machine Mechanical Characteristics:
Constructed from Mihanna cast iron, the casting exhibits exceptional rigidity, stability, and resistance to deformation.
The main spindle, made from chrome-molybdenum alloy, is tempered, heat-treated, and precision-ground. Coupled with high-precision bearings, it ensures powerful cutting force and outstanding accuracy.
The milling head gear box, crafted from cast iron, offers excellent rigidity, minimal deformation, heavier weight, and superior cutting accuracy, enhancing the durability of the milling head.
The three-axis screws are capped with advanced phosphorus bronze, ensuring remarkable wear resistance and a long service life.
The XY axis slide benefits from high-wave heat treatment for superior wear resistance, extending the machine's lifespan. An imported wear-resistant plate on the XY axis interface facilitates easy operation and minimal wear rate, ensuring durability.
The machine is equipped with an efficient lubrication system, uniformly distributing oil to ensure smooth slide operation.
Weighing 100 kg more than similar products, this machine promises enhanced stability and performance.
Featuring a powerful 5hp motor and a high-rigidity, precision NT40 spindle, this machine is perfectly suited for handling large parts and heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
