Low Rpm Gear Motor DC 6V 12V 24V Apply to Armarium for Elctrical Products

Product Description

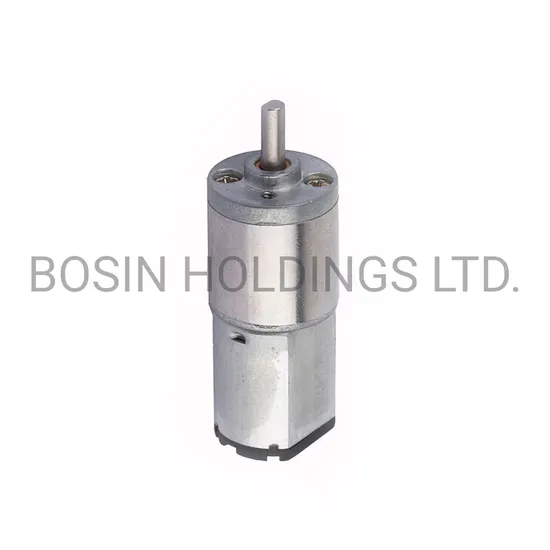

We are a professional manufacturer for micro DC motor, our products include carbon brush motor, metal brush motor, brushless motor, stepper motor. We got ISO9001, TS16949 certificate, if you have any enquiry, please feel free to contact me. 1.1. Size:Dia:16*15.5*18.6mm
1.2. End Play:0.5mm MAX
1.3. Operating Temperature: -10 ~ +60°C
Note:
1. Shaft length,D-shaped size and length can be custom made.
2. L is 14 and redcution ratio: 100:1
3 Reduction ratios for option:

Gear box length(mm)	Reduction Ratio
11	1/13,1/16
12.5	1/26,1/32,1/37,1/45
14	1/75,1/91,1/105,1/128
15.5	1/148,1/182,1/210,1/256,1/296,1/362
17	1/592,1/825,1/1021

2.1.MEASURING CONDITIONS
1.1.Rated voltage: 6 V DC
1.2.Motor Position: To be measured with motor horizontally held.
1.3.Environmental temperature:25±10°C.
1.4.Environmental humidity:65%±20%RH.
2.2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.2.1.At No load
2.1.1.Speed: 146.3 ±12%rpm
2.1.2.Current: 0.084 A(max 0.17A)
2.2.2.At On load
2.2.1.Torque: 0.28 kg.cm
2.2.2.Speed: 126.5 ±12%rpm
2.2.3.Current: 0.18 A (max 0.27A)
2.2.3.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.)

Remark:The above technical datas are only for reference,we can customerize them according to different requirements after evaluation.

Ratio	Model No.	Voltage		No Load		On Load
		Operating Range	Nominal Voltage	Current	Speed	Current	Torque	Speed
		V	V	A	r/min	A	kg.cm	r/min
1/14.4	BS-16A030-14.4-06805	6.0-12.0	6	0.03	805	0.06	0.03	610
1/35.9	BS-16A030-35.9-06184	4.0-8.0	6.0	0.019	184	0.04	0.05	156
1/89.8	BS-16A030-89.8-06179	4.0-6.0	6	0.079	179	0.228	0.4	150
1/225	BS-16A030-225-0651	4.0-8.0	6.0	0.04	51	0.112	0.5	42
1/562	BS-16A030-562-03.731	4.0-6.0	3.7	0.09	31	0.38	1.5	25
