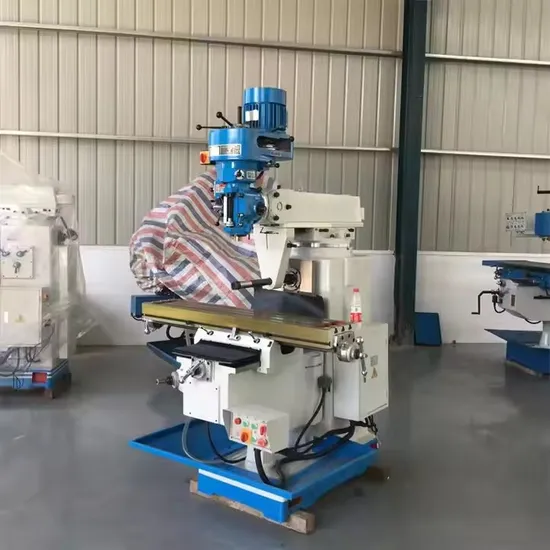

New Universal Vertical Horizontal Knee Type Milling Machine X6336A
Basic Info.
Model NO.
X6336A
Type
Knee-and-Column Milling Machine
Controlling Mode
Servo Motor Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Milling Machine for Metal
Model
X6336A
Control
One Servo Motor Control Three Axes
Milling Head
Taiwan #5 Belt Drive Milling Head
Max.Verticalmilling Diameter
25mm
Max. Drilling Diameter
10mm
Delivery Time
3 Months
Warranty Time
12 Months
Table Size
1650X360mm
Max. Travel of Table(X/Y)
1300/300mm
Transport Package
Wooden Case
Specification
X6336
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Product Description
Knee-Type Unisersal Milling MachineModel X6336A
Standard Accessories:
Work light,
cool down,
Emergency stop,
CE electrical,
new control panel,
one servo motor control three axes,
Taiwan #5 belt drive milling head (10 steps),
self-lubrication.
| Model | X6336 |
| Max. drilling diameter | Φ10mm (steel) |
| Max.vertical milling diameter | Φ25mm |
| Spindle taper | 7:24 ISO40( vertical spindle) 7:24 ISO50(horizontal spindle) |
| Spindle speed range | 70~3620 r.p.m. ( vertical spindle) 58~1800 r.p.m.(horizontal spindle) |
| Spindle speed steps | 10 steps ( vertical spindle) 12 steps (horizontal spindle) |
| Vertical spindle sleeve travel | 150mm |
| Rotary angle of vertical milling head. | ±45° |
| Table size | 1650 mm x 360 mm |
| Max. travel of table(longitudinal/cross) | 1300 mm /300 mm |
| T-slot (number-width-distance) | 3/14mm/95mm |
| Distance between vertical spindle axis and guideway surface of column | 160mm-660mm |
| Distance between horizontal spindle axis and table surface. | 0-420mm |
| Table feed range | X/Y 25-800mm/min, Z 8-267mm/min |
| Rapid feed(X/Y/Z) | 1000/1000/335mm/min |
| Main motor power(Ver./ Hor.) | 3.7KW / 4KW |
| Feed servo motor | 2.36KW 15N/m |
| Power of coolant pump | 90W |
| Overall dimension (L×W×H) | 2550*2070*2650mm |
| Net weight | 2800 kg |
| Packing size (L×W×H) | 2070*2280*2560mm |
| Gross weight | 3100 kg |
