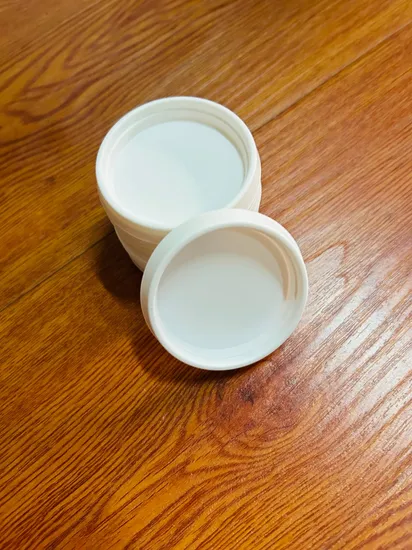

PP Pet Plastic Lid Cover Forming Machine with Flat or Cross Hole

PP Pet Plastic Lid Cover Forming Machine with Flat or Cross Hole

US$54,999.00 1 Set (MOQ)

Basic Info.

Model NO.
MODEL-500L
Certification
ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
400mm*500mm
Max Depth
90mm
Heating Capacity
140PCS
Suitable Material
PP, BOPS, PLA, Pet, PS, PVC, etc.
Transport Package
Wrapping Film
Trademark
MINGDU
Origin
China
HS Code
8477409000
Production Capacity
5sets/Month

Product Description


MODEL-500L MULTISTATION THERMOFORMING MACHINE
technical parameter:
Model MODEL-500L
Suitable Sheet PP, PLA, PET,BOPS,PVC, HIPS, Foam PS,
Largest Forming Area 500mm*400mm
Maximum Width 520mm
Maximum Depth 90mm
Power 52Kw
Air Pressure 0.6-0.8Mpa
Production rate 10-30die/min
Depth of Sheet Material 0.10mm-1.20mm
Weight 5000Kgs
Overall Dimension 4900mm*2000mm*2200mm(L*W*H)

INTRODUCTION:
Model-500L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PP plastic products etc.
main feather:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
INSTALLENT: the all cost should be in buyer's side, as visa, two-way tickets, meals and accommodation, etc.
the buyer should pay 100USD/Day for salary.
