Gear Head Drilling and Tapping Machine Zs-32HS Zs-32PS

Product Description

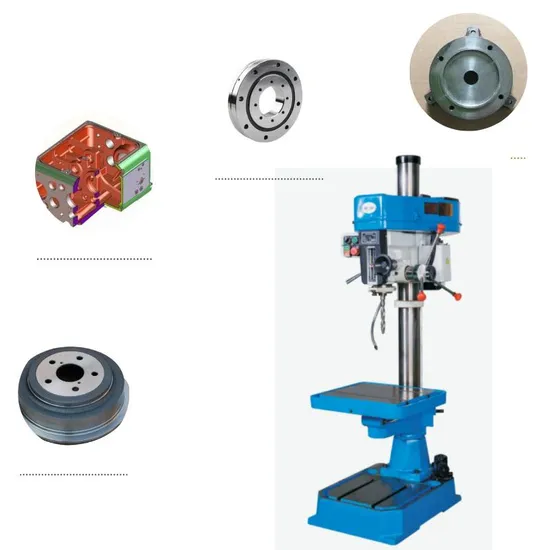

GEAR HEAD DRILLING &TAPPING MACHINE ZS-32HS/ZS-32PS
Characters:
Gear hardened , large driven torque; B1 type optional 2-speed motor , wide
spindle speed range.
"P" With collantsystems "H" Without collant systems.
Specification:

Model No.	ZS-32HS	ZS-32PS
Item No.
Moving
Max.Drilling capacity	31.5 mm	31.5 mm
Max.Tapping capacity	SteelM24 Cast ironM32	SteelM16 Cast ironM20
Diameterof column	115 mm	115 mm
Spindle
Spindle travel	130 mm	130 mm
Distance spindle axis to column generating line	202 mm	202 mm
Max.Distance spindle nose to table	790 mm	790 mm
Max.Distance spindle nose to base	1245 mm	1245 mm
Spindle taper	MT3	MT3
Spindle speeds	100~2150 r/min	100~2150 r/min
Spindle speeds series	12	12
Dimension of worktable surface	570X470 mm	570X470 mm
Table travel	515 mm	515 mm
Dimension of base	635x460 mm	690x520 mm
Other
Overall height	1760 mm	1810 mm
Main motor	Single-phase1100 w Three-phase1500 w	Single-phase1100 w Three-phase1500 w
N.W./G.W.	345/305 kg	360/320 kg
Packing dimension	80X75X186 cm	86X78X191 cm

Specification:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
