10% Factory Discount 1000W /1500W/ 2000W Pipe Weld Aluminium Welding Prices /Stainless Steel Fiber Laser Welding Machine /Laser Welders

Product Description

10% Factory Discount 1000W /1500W/ 2000W Pipe Weld Aluminium Welding Prices /Stainless Steel Fiber Laser Welding Machine /Laser Welders
Application scope
* It is widely used in advertising, chassis cabinet, lighting, metal furniture, foreign metal processing and other industries. Features of the model(hsg laser welding machine)
* The welding heat affected zone is small, the welding quality is good, and the deformation of the workpiece is small. * The photoelectric conversion efficiency of the laser is as high as 30%, and the energy consumption is lower. * The welding speed is fast, 3-5 times that of argon arc welding, which can save the labor of two welding workers.
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Technical Parameters	FMW III
Power	1000-2000W
Laser wavelength	IPG: 1070±10nm; Raycus: 1080±5nm
Working mode	Continuous/pulse
Length of optical fifiber	5/8m
Welds requirements	≤1.2mm
Welding head	Temperature sensor+dual protective lens+ adjustable laser spot (Pro)
Recommended material thickness	0.5-4mm (according to power)
Weldable materials	Stainless steel, carbon steel, aluminum products and galvanized sheet
Wire feeder	1.6mm dual-driven wire feeder
Overall dimensions (L*W*H)	1300*800*1206mm (actual confifiguration shall prevail)

Detailed Photos

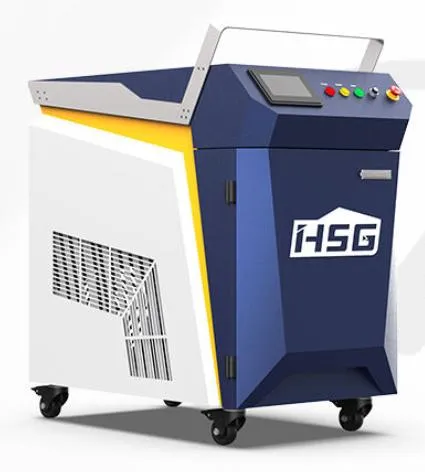

SPECIAL ADVANTAGES OF LASER WELDING SMALL IN SIZE, EASY TO MOVE
* The machine is integrated and its overall size is only 1300*800*1206mm. 5m/8m optical fiber cable enables are available for use.
* Handheld welding head is equipped with temperature sensor and double protective lens. Welders will feel no tired after a long work.
* Its top pull-push handle and bottom universal casters (lockable) are convenient for users to move this machine.
Use and Maintenance
The electro-optical conversion rate is as high as above 45% and its power stability is ±0.5%.
Pumping source can last for over 100000h, basically maintenance-free.

3 TIMES FASTER THAN ARC WELDING,
NO POLLUTION
WELDING AND FIRM WELDS
Welds are sightly with smooth transition under working mode of continuous laser.
Welding samples are less affected by welding heat. With little deformation and tiny bulge, slight or almost no further polishing is needed, saving labor and time costs.
Welding strength of some metals is even higher than parent metal. The tensile strength is generally high.
High Quality Hand Held Type Laser Welding Machine for Aluminum /Copper /Stainless Steel with Feeding Wires Handheld Fiber Continuous/Spot Laser Welding Machine Welding Sample
Company Profile
After Sales Service
HSG Customer Service Policy
The HSG customer service team is currently equipped with more than 200 professional employees, including pre-sale services, in-sale services, after-sales service, customer training and other professional teams, from technical process consulting, visits and sample inspection, customer site inspection planning and installation debugging , customer personnel training, equipment maintenance and repair, etc., provide 7*24 hours a full range of rapid response services.
