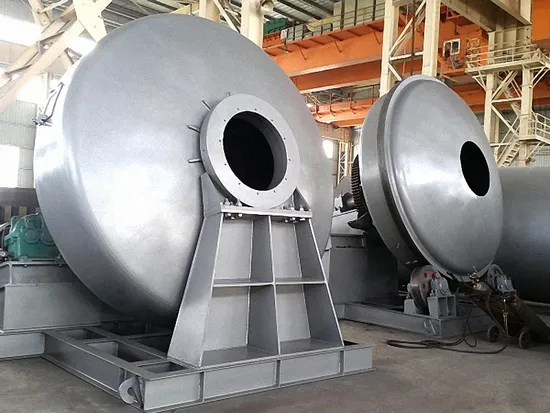

Newest Ceramic Sand Proppant Granulators

Product Description

The new ceramic sand production line advantages:
1, High yield, Initial production output increased by more than 20%.
2, Energy saving, Reduce heat emissions, dust emission concentration of less than 30mg/Nm3.
3, Product quality and reliable, As the ball high, the strength of ceramic big.
Ceramic sand production line system configuration:
Bauxite crushing, drying bauxite, batching system, grinding system, pelletizing systems, raw material drying systems, finished screening system
Products Introduction:
ZK series of new ore pellet mill is Zheng machine for the domestic ceramic industry technology upgrading is an urgent need, collaborative innovation through research and development of new granulators, fully meet the requirements of clean and efficient production of a variety of ceramic. Achieved good results in practical applications, has been unanimously praised by users.
Features:
(1) feeding - mixing - nucleation - granulation - shaping the whole process of computer-controlled, high degree of automation;
(2) granulation principle advanced, in situ mixing, granulating, short process, high efficiency;
(3) production system fully enclosed, dust pollution, low noise;
(4) a short process, equipment, small footprint, saving the plant area;
(5) working noise is less than 60dB.
Structures:
ZK series of new pellet mill from the main hopper, reversible spiral, the main measure positions and auxiliary measurement positions, constant dosing tank, powder recycling processor, fan, granulating host and complete control system.
How it works:
Operation of the system starting from the computer control panel, automatic start system lubrication device, open the dust blower, start granulators, the main silo began to reversible cutting spiral, assigned by the reversible screw to the main and auxiliary measurement position measurement positions, the main measure warehouse material into the granulation host materials with high speed rotor movement together; Hosts added to the granulation tank is measured by the constant provision of water, so that the material gradually formed in the granulator ball nuclear, nuclear fully formed after the ball, and auxiliary measurement positions to the provisions of the material, so that the ball nucleation and growth, until the required particle size, supplemented plus polishing materials, unloading belt conveyor to the bottom of the pellet mill finished smooth surface and transported to the next process, the completion of a granulation cycle.
The company has advanced production technology and rich experience in production, to provide customers with professional magnesium metal, mineral processing, cement, lime, ceramic sand a full-service equipment. In addition, the company's crushing, grinding, calcination, conveying, screening and other equipment class quality.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln: http://hnzkjq.en.made-in-china.com
Preheater: http://hnzkjq.en.made-in-china.com
Cement Mill: http://hnzkjq.en.made-in-china.com
Rotary Dryer: http://hnzkjq.en.made-in-china.com. Html
Raw Mill: http://hnzkjq.en.made-in-china.com
Ball Mill: http://hnzkjq.en.made-in-china.com

Model	Volume		Working Mode	Working Condition
	Liter	Kilogram
ZK-01	8-10	10	Intermittent	Standard Atomspheric Pressure
ZK-02	12-15	15	Intermittent	Standard Atompspheric Pressure
ZK-03	23-25	25	Intermittent	Standard Atomspheric Pressure
ZK-15	400	400	Quasi-continuous	Negative Micro-pressure
ZK-16	500	500	Quasi-continuous	Negative Micro-pressure
ZK-19	900	900	Quasi-continuos	Negative Micro-pressure
