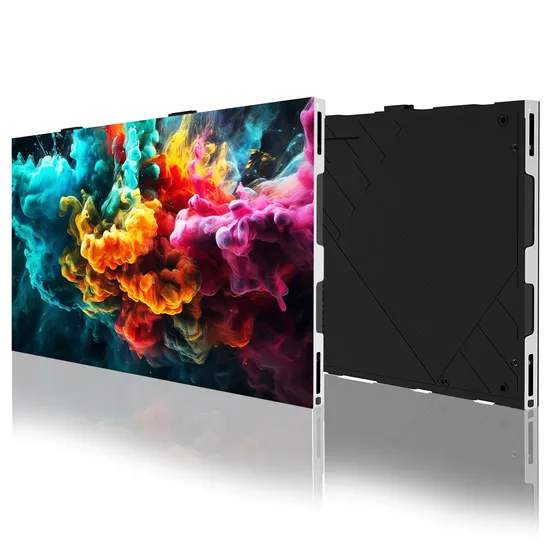

Indoor High-End Ultra-Thin P1.875 LED Screen
Basic Info.
Model NO.
X3 Series P1.875
Pixel Pitch
1.875mm
Pixel Configuration
1R,1G,1B
Pixel Density
284, 444/Sqm
Scanning Mode
1/45scan
System Operating Platform
WIN2000
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP43
Certification
CE, RoHS, CCC
Module Size
300X168.75mm
Cabinet Material
Die-Casting Aluminum
Connection
Wire/Wireless
Operation
PC/Cellphone
Refreshrate
3840Hz
Brightness
>600
Transport Package
Plywood Case/Flight Case
Specification
600x337.5x27.5mm
Origin
China
HS Code
8528591090
Production Capacity
50000PC/Year
Packaging & Delivery
Package Size
65.00cm * 40.00cm * 5.00cm
Package Gross Weight
7.000kg
Product Description
https://heqiled.en.made-in-china.com/ Product DescriptionIndoor High-end P1.875 Ultral-thin LED Screen
Note: This product is toatally different from the ordinary one!
| Pixel Information | Pixel Pitch | 1.875mm |
| Pixel Density | 284,444dots/sqm | |
| Pixel Configuration | SMD1515 | |
| Contast ratio | 10,000:1 | |
| Color temperature | 1000-18500k(adjustable) | |
| Grey level | 16bit | |
| LED Module | Size(mm) | 300mm (Width) * 168.75mm(Height) |
| Resolution | 160 (Width) * 90(Height) | |
| Cabinet | Size(mm) | 600mm(Width) * 337.5(Height)*27.5(Thickness) |
| Resolution | 320(Width) * 180(Height) | |
| Weight | 4.5 kg/pcs | |
| Material | Die casting Aluminum | |
| Maintenance Mode | Front | |
| Module QTY/Cabinet(WxH) | 2x2 | |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 450 Watt/sqm | |
| Avg. Power Consumption | 100 Watt/sqm | |
| Brightness | 600-1000cd/sqm (adjustable) | |
| Brightness Uniformity | Luminance Discrepancy < 5% | |
| Best Viewing Angle | Horizontal:170°,Vertical:170° | |
| Ambient Conditions | Temperature Range | Working:-20deg. to +60deg |
| Operating Humidity | 10%-90%RH | |
| Ingression Protection Grade | IP43 | |
| Processing | Drive Mode | Static,1/45scan |
| Refresh Rate | 3840Hz, Adjustable(depends on control system) | |
| Signal Input | DVI, Composite Video for Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS485 | |
| Controller | Colorlight or Nova | |
| Certificate | CCC/ CE/ RoHS/ CB/ TUV/ IEC | |
