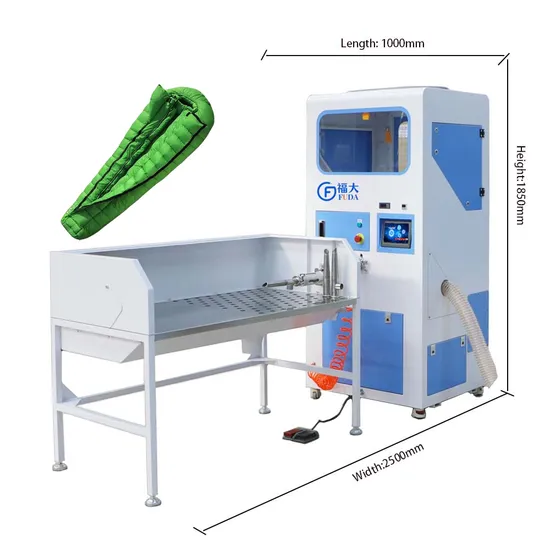

FUDA Small Volume Automatic Touch Screen 1 Station 2 Weighing Scales Down Sleeping Bag Filling Machine
Basic Info.
Model NO.
1 Head 2 Scales
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
Single-Head
Product Name
Goose Down Filling Machine
Display Panel
7" HD Touch Screen
System Language
Chinese English Vietnam Turkish Russian
Control System
PLC
Weighing System
2 Channels
Filling Range
0.2-35g
Nozzles Size
19mm 25mm with Air Return
Daily Capacity
100 Plus Down Jackets
Power Supply
1 Phase AC220V 50/60Hz
Air Pressure
0.6-0.8MPa
Air Comperrsor
6.0kw
Footprint
1000*2500mm(L*W)
Humidity
45-65%
Type
Weighing-Type Filling Machine
Warranty
1-Year Free Spare Parts and Online Technical
Transport Package
Wooden Case
Specification
1 Port 2 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100
Packaging & Delivery
Package Size
100.00cm * 91.00cm * 205.00cm
Package Gross Weight
252.000kg
Product Description
Product Overview H21E Automatic Goose Down Filling Machine with 1 Port 2 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 100-150 down jackets. the 1 Head 2 Scales automatic down cotton filling machine is suitable for a 30-50 people garment factory that focuses on the quality garment process. Products Description Product Advantages| High accuracy | The dynamic error accuracy is ±2%. |
| Control system - Compiled PLC | Quickly, the communication speed rate: 0.4ms. |
| Touch screen - HD HMI | Easy to learn and operate, Multi-language, sensitive touch. |
| Feeding Material - accuracy | the error accuracy is controllable. |
| Returning Material - Quickly | The one-key operation is to empty the remaining material in all scales. |
| Dedusting recycling - Clean | Dustless working environment, reducing raw material wastage. |
| Gear motor - low noise | Low noise, high torque, long life, and easy maintenance. |
| Appearance - The Beauty of Simplicity | Compact design, clean white, technology blue. |
| Model NO. | H21E |
| Product Name | Automatic Goose Down Filling Machine |
| Filling Valve Head | Single-Head |
| Filling Range | 0.2-35g |
| Display Accuracy | 0.01g |
| Nozzle Size | 19mm/25mm with air return, 32mm for duvet |
| Storage Volume | 2-3Kg |
| Filling Materials | Duck Down, Goose Down, Polyester Fiber, Ball Fiber |
| Application | Down Jacket, Down Pants, Down Duvets |
| Daily Capacity | 100 plus down jackets |
| Power Supply | 1Ph Ac220v 2.0Kw |
| Air Supply | 0.6-0.8Mpa, 6.0Kw |
| Display Device | 7" Touch Panel |
| Control System | PLC with 2 Weighing Units |
| Footprint | 1.0*2.5*2.0m(L*W*H) |
| Net Weight | 175Kg |
| Gross Weight | 252Kg |
| Transport Package | Wooden Case |
| Specification | 1 Ports 2 Scales |
| Trademark | FUDA |
| Origin | Shanghai |
