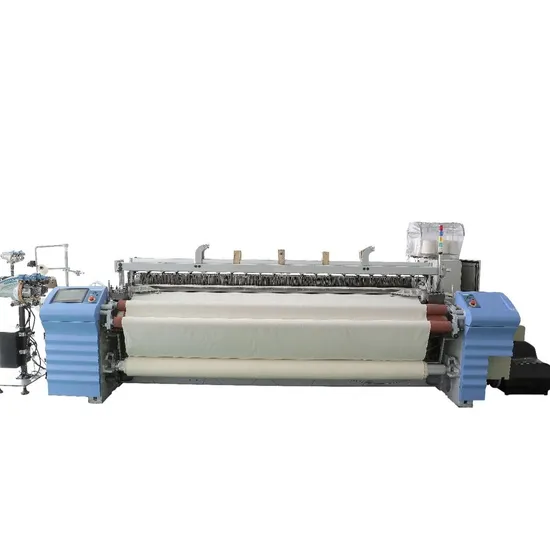

Air jet loom textile weaving machine Model JLH9200
It is our newly developped air jet loom ,ame with Tsudakoma ZAX9100,but with much lower price.
JLH9200 is the most advanced high speed air jet loom with wide weaving range, stable operation, saving gas and electricity, reducing production cost and improving production efficiency. Compared with other models, it can save 20%-30% of electricity and achieve efficiency of over 90%. It is more convenient to operate when the machine is moved down.
Detailed Photos



Product Parameters

TECHNICAL PARAMETERS
Item	Specifications	Optional parts
reed space	Nominal reed space :190,210,230,250,280,340,360cm
Yarn range	2-Nozzle,4-Nozzle,6-Nozzle for free choice
Drive	Direct control and positioning stop through electromagnetic brake
	Push-button bimanual operation and forward-reverse inching motion
	Ultra start motor 3.0KW (Cam shedding)3.7KW(Dobby shedding) 6.5KW (Jacquard shedding)
Weft insertion	Main nozzle and sub-nozzle combined type	Stretch nozzle
	Adopt profile reed
	Auxiliary main nozzle
shedding	Positive cam shedding: Heald Frames max.8 pcs
	Dobby shedding: Heald Frame max.16pcs
	Jacquard shedding
Let-off	Positive easing,double back girder
	Single warp beam (below 280cm)	Twin-beam
	Positive easing,double back girder
	Flange dia: 800	914;1000
Take up	Electronic take-up	Mechanical winding
	Pick density range:25~205pcs/inch(mechanical take-up),25~300pcs/inch (electronic take-up)
	Length counter:display of weaving reports, with fixed-length stop function
	Max. Take-up dia.: φ600mm(cam, dobby,jacquard shedding); φ520mm (crank shedding)
	Temple:top-mounted type.
Beating-up	Crank type multiple sley sword beating-up mechanism
	4-Link rod beating-up(190~280om),6-Link rod beating-up (above 280cm)
Measuring/storing	Vibrating type pick storer
Weftstand	Floor-mounted 4 cones (2-nozzle);floor-mounted 8 cones(4-nozzle
Selvedge	Planetary gear motion
Waste filling removal	Catch cord type
Cutter	Mechanical type
Lubrication	Oil bath system for the main driving parts,centralized lubrication by manual	Automatic centralized lubrication
Auto-stop motion	Weft yarn:photoelectric weft feeler, double feelers
	Warp yarn: electric contact-type 6-row droppers
	Others: stop motion for selvedge and calch cord yarn
	Stop cause indication: information display on toluch screen, multiple function 4-color lamp display
Automation	Artificial intelligent touch screen:with functions of parameter setting, Auto control, automatic monitoring, self-diagnosis.
	Pick finding device: automatic shed finding
	Slow inching by inverter(forward,reverse)
	USB data interface

Our Advantages
The company fully implemented 6S management,has access to "ISO9001:2000","CE","SGS"certification. Established in 1973.The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time. Help customers design plant drawings and calculate the input-output ratio. Our machines are of reliable quality. Indian customers have used it for more than 9 years. Our after-sale quality guarantee time is 1.5 years,higher than peers. We are very familiar with the standards of the medical industry and customer needs.And familiar with the related equipment of the entire industry, can provide customers with a complete set of services.Save customers a lot of unnecessary troubles and improve the operating efficiency of the entire project. After Sales Service
The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time. Our after-sale quality guarantee time is 1.5 years,higher than peers. Provide procurement and technical guidance for all equipment,plant layout and plant operations,machine maintenance and train. Company Profile
Established in 1973.manufacture and exporter of air jet loom,medical gauze loom,water jet loom and whole production line of cloth and medical gauze.
Depends on reliable quality and price,our product has good reputation from customer.
Our vision:Win-Win Cooperation,develop together with custome
Packaging & Shipping

FAQ
Q:Are you factory or trade company?
A:We are factory with trade department

Q:What kind of product do you make?
A:Water jet loom,air jet loom,medical gauze loom

Q:Do you have engineer work available in abroad?
A:Yes,we have more than 20 engineers for sales service in domestic and abroad.

Q:Which market has your water jet loom and air jet loom?
A:We sold machine in India,Pakistan,Russa,Uzbekistan,Tailand,Korea,Indonesia,Ethopia,
South Africa,Turkey,Uganda.

Q:How can we go to your factory?
A:Arrive at Qingdao air port,take one hour to our factory by car.We will pick you up from air port.


For any further question,just contact us,we will reply you within 20 minitues
