Wood Drying Kiln with Steam Heated Hot Water Timber Chamber

Product Description

Made-to-measure to meet your requirements

No matter how much timber you need to dry at one go, say from 10m3 till 200m3, XINAN will always have the most suitable kiln for you.
Product Description

Main technology coefficient of drying kiln

Model	Capacity(m3)	Dimension of Kiln(m)	Power(KW)
XN20	20	4.3×4.8×4.8	6
XN30	30	4.3×5.6×4.8	6
XN40	40	4.3×6.6×5.6	9
XN50	50	6.4×6.0×5.6	9
XN60	60	6.4×6.6×5.6	9
XN80	80	9.0×6.6×5.6	15
XN100	100	9.0×8.6×5.6	15
XN120	120	10.5×8.6×5.6	18
XN150	150	13.5×8.6×5.6	21
XN200	200	15.8×8.6×5.6	27

CONVENTIONAL WOOD DRRYING KILNS

* Automatic or semiautomatic or hand-operate control system
* Kiln housing can be all-aluminum or concrete and brick structure
*The folio doors and hanging doors are highly airtight opened and closed flexibly and easily
* The handing of wood is completed by forklift or the sliding vehicle with floor rail
* Energy source of wood drying kilns can be steam, hot-water, hot-oil, gas, and electricity

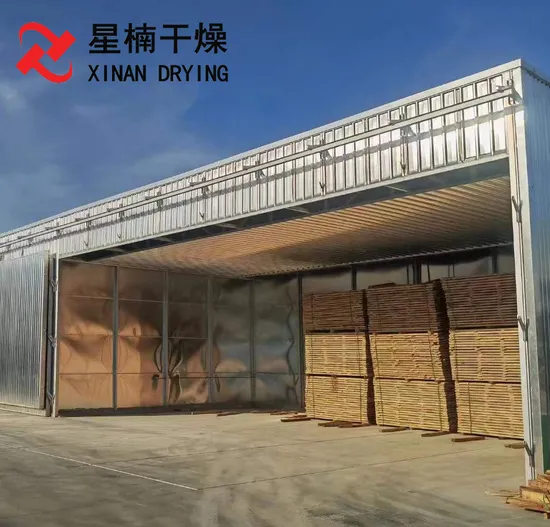

All-aluminum kiln housing is composed of covering panels, insulation layers, columns and trusses, Inner covering is aluminum panel, outer covering is aluminum panel too. Insulation layer is made of fiber glass or rock wool. The material of column and truss is special shaped aluminum.
To meet the cold climate in Russia, the thickness of the kiln roof is up to 250mm which can with stand the snow load of 300-400kg/m2, the thickness of the kiln walls is 150mm, which can guarantee the normal operation during the temperature of -30~-50ºC.
