Hcvac New Ceramic Cup Tableware PVD Decorative PVD Design Coating Machine

Product Description

Product Description

Ceramic cup tableware decorative vacuum coating machine/PVD color vacuum coating machine: The machine use vacuum coating method can coat ceramic tiles,ceramic cups, plates, tableware,porcelain tiles,ceramic mosaic, floor tiles,glass mosaic.glass tiles. Besides ceramic,you can also coat metal,glass products. The machine is used to Physical deposit TiN (gold color) ,Ti (silver color) and other coating on ceramic products. it can replace the traditional electroplating gold, enhence the adhension, saves cost and improve production efficiency
This is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc. The principle of vacuum electric arc ion coating is intergrating cold cathode, arc discharge Self-sustained light, ionization plating material with pulse technique to improve depostion particle energy and survival rate and the properties of the film. It can coat on the surface of the metal as well as nonmetal

APPLICATION

Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
WALL FLOOR PORCELAIN TILES
size : 8" x 8" (200mm x 200mm) size : 8" x 12" (200mm x 300mm)
size : 10" x 13 " (250mm x 325mm) size : 10" x 16 " (250mm x 400mm)
size : 12" x 18 " (300mm x 450mm) Size :36" x 36 " (900mm x 900mm)
ALL SIZE CERAMIC TABLEWARE,Including Dishes,spoons,bowls,coffee cup,teapot and others,You also can get all kinds of flower designing on it.
We also produce Continuous ceramic tile coating production line for large quantity production.

TECHNICAL DATA

Mode	LH-1618	LH-2121	LH-2522
Dimension	D1600*H1800mm	D2100*H2100mm	D2500*H2200mm
Coating mode and main confirguration	Eighteen arc targets	Twenty two arc targets	Thirty two arc targets
Power source	Electric-arc power, Filament power, Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical side opening door, pump system postposition, double water cooling
Vacuum system	Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

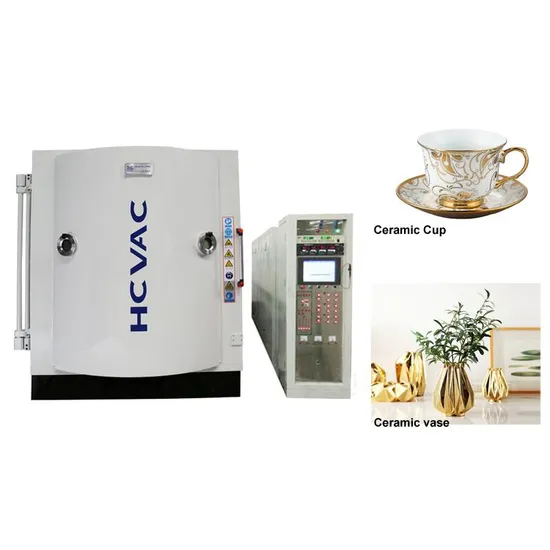

Those are the machine pictures:
Those are coated samples:


Application
Machine Category:

Company Profile
Workshop:
Certifications

Packaging & Shipping
Our Advantages

Why Choose HCVAC system?
Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
