Aenor Watermark CE Certified Hot Water Buttwelded Pipe Pex Al Pex Pipe

Product Description

Aenor Watermark CE Certified hot water buttwelded pipe Pex Al PEX Pipe :Product Description

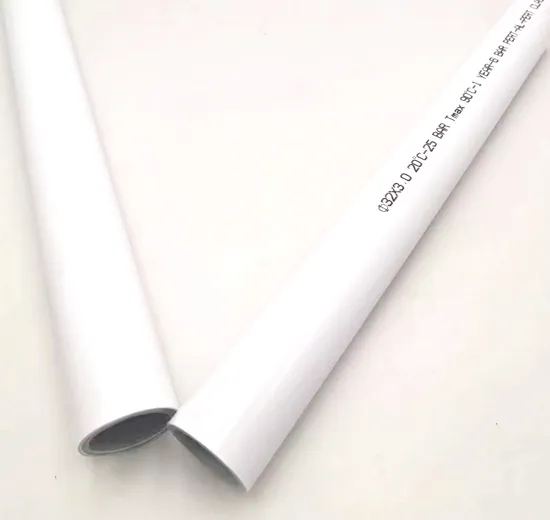

Mark Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic, tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipesit can be used in:
1. Pipes for hot and cold water pipeline system in industry and residential area.
2. Pipes for industry and chemical liquids conveying.
3. Pipes for conveying drinking water.
4. Pipeline for compressed air.
5. Heating system under floor and wall.
Main Characteristics
Thermal conductivity 0.45W/(m. K. )
Coefficient of heat expansion 0.025mm/(m. K)
Bend radius ≥ 5D(D means outside diameter)
Oxygen-permeability 0
Coefficient of heat roughness 0.0004mm
Other Static-free, longevity
Markt PEX-AL-PEX pipe type and size:
1,Type ,butt welding + overlapped
2,Color:white ,yellow ,orange ,blue and black as need
3,Logo:OEM ,NO Logo or cusotmer logo
4,Used for :Water + gas +heating systems
5,Size ,from 14-63mm
6,Supplly both pipe and fittings

ALUMINUNM PLASTIC COMPOSITE PIPE---butt welded PE(PEX)-AL-PE(PEX)
Picture	Desc.	Modle No.	Spec.	Wall thickness(mm)	Qty/pack(M)
	PE-AL-PE PIPE (MBLP-01)	MBLP14	1014	2.0	100/200/500
		MBLP16	1216	2.0	100/200/500
		MBLP18	1418	2.0	100/200
		MBLP20	1620	2.0	100/200
		MBLP25	2025	2.5	50/100
		MBLP26	2026	3.0	50/100
		MBLP32	2632	3.0	50/100
	Print:Logo PE-AL-PE water pipe 16*2.0mm 60°C-10bar Standard Certificate No. Date 30M
	PE-AL-PE PIPE (MBGP-01)	MBLG14	1014	2.0	100/200/500
		MBLG16	1216	2.0	100/200/500
		MBLG18	1418	2.0	100/200
		MBLG20	1620	2.0	100/200
		MBLG25	2025	2.5	50/100
		MBLG26	2026	3.0	50/100
		MBLG32	2632	3.0	50/100
	Print: PE-AL-PE gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M
	PEX-AL-PE(X) (MBRP-01) (MBRP-02)	MBRP14	1014	2.0	100/200/500
		MBRP16	1216	2.0	100/200/500
		MBRP18	1418	2.0	100/200
		MBRP20	1620	2.0	100/200
		MBRP25	2025	2.5	50/100
		MBRP26	2026	3.0	50/100
		MBRP32	2632	3.0	50/100
	Print:Logo PEX-AL-PEX 18*2.0mm 95°C10bar Standard Certificate No. DateM 16M
	Gas pipe PE(x)-AL-PE(x) MBGP02	MBGP14	1014	2.0	100/200/500
		MBGP16	1216	2.0	100/200/500
		MBGP18	1418	2.0	100/200
		MBGP20	1620	2.0	100/200
		MBGP25	2025	2.5	50/100
		MBGP26	2026	3.0	50/100
		MBGP32	2632	3.0	50/100
	Print: PEX-AL-PE(X) gas pipe 16*2.0mm 95°C10bar Standard Certificate No. Date 20M

Packaging & Shipping
Packing :
1,By bar or roll
2,By plastic bag or carton
3,Lable with cusotmer logo
Shipment :
1,Quick shipment ,10-15 days one container
2,All shipment in time
3,LCL shipment accept
