Saifan Woodworking Pallet Lumber Cutting Machine with Stacker Production Line

Product Description

Saifan Woodworking Pallet Lumber Cutting Machine with Stacker Production Line Product Description
Customized base on requirements, please send us your raw material length width thickness, finished cutting length, which finished length go to which place, the finished length collect manually or automatically, your space size.
Below some design sample for your reference .

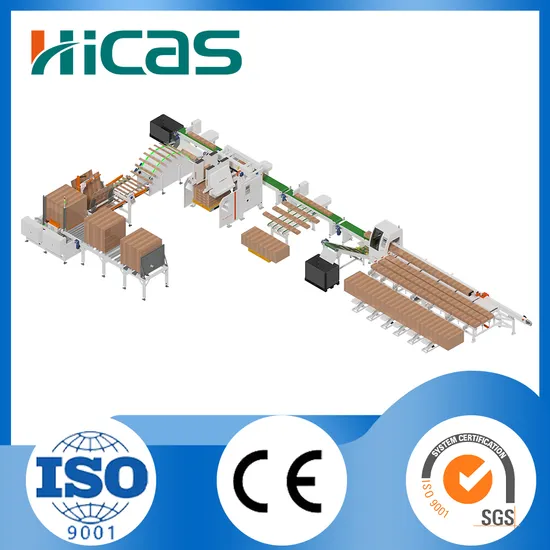

Automatic solid wood cutting conveyor line sorting machine

No.	Model	Name	Qty.	Notes
1	SF6060S	Automatic cutoff saw with automatic feeding system	1 set	Right feeding, if change to left feeding price increase 10%
2	SF8000T	Waste conveyor	1 set	610mm width
3	SF8012	Stacker	1 set	Length 850-2000mm
4		Waste collection box		Buyer prepare
5	SF8301	2m belt conveyor	2 set	500mm width
6	SF8301	3m belt conveyor	2 set	500mm width
7	SF8302	3m belt conveyor	1 set	800mm width
8	SF8401	Short stacker	2 set	Length 400-1200mm
9		Sorting head+stopper	3 set	No. 1 2 3 as right side picture
10		Electric control cabinet	1 set

(1)SF6060S automatic cross cut saw
This is automatic cross cut saw, cutting continuously and automatically with high precision ±1mm and high efficiency. Have program, can pre-set and edit and save cutting plans, and can decide which length go to which part of the line.

Model	SF6060S
Saw blade diameter	600*30mm
Feeding table length	6m
Out-feeding table length	1.2m
Cutting thickness	10-150mm
Cutting width	30-300mm
Cutting section Thickness*width	Max.150*280mm Max. 140*300mm
Feeding speed	0-50m/min
Pressing method	Cylinder, air pressure 0.6-0.8Mpa
Cutting tolerance	In +/-1mm
Cutter spindle rotation speed	2850rpm
Servo drive motor power	3kw
Feeding motor power	2.2kw
Cutting motor power	11kw
Total power	16.2kw
Voltage	380v 50hz 3phase
Dust collection port	150mm*2pc
Electrical components	Schneider
PLC Touching screen	Siemens
Machine space	10000*2500*1600mm
Weight	3300kg

(2)Wood Pallet Stacker
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg.
With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.

Model	SF8010
Wood length	800-1500mm/2000mm
Wood width	50-200mm
Wood thickness	15-100mm
Spacer thickness	10-38mm
Spacer width	25-150mm
Spacer length	800-1200mm
Stack height	Max. 1100mm
Stack width	800-1200mm
Stack length	800-1500mm
Power	12kw
Voltage	380v 50hz 3phase
Air pressure	0.6-0.7MPA
Spacer feeder	3pc
Outfeeding table	4m length
Machine height	830-930mm
Machine space	8700*6700*2730
Machine weight	3750kg

Detailed Photos

Saw diameter 600mm	Cutting width 30-300mm	Cutting height 10-140mm
With powerful press, ensure smooth and fast clean cutting The saw power is 11 kw. The machine has a high temperature resistant multi-slip belt. The power transmission directly and powerful, the lifting of the saw blade is controlled by a cylinder and the cutting speed is adjustable.

Feeder system	Lifting conveyor
With automatic feeding table, saving labor intensity.	This lifting conveyor at last is for some short wood collection, buyer could put a box bin there.

Vertical waste conveyor	Belt conveyor
Transfer the wood waste to 1600mm height, then can fall to dustbin.	1.8m length rubber belt conveyor, 0.75kw, locate at the saw machine exit, wood length inside 150mm will fall to floor.

Sorting belt conveyor	Manual connection table
Rubber belt, length 3m, 0.75kw, with stopper can stop the wood, and then pneumatic sorting pusher push the wood to presetting place.	2m length, the space between is adjustable to work for different length of wood, manual connect the wood here. With small wheels inside, convenient for wood moving.

Stacker	Main parts brand
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg. With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.	Electrical parts Schneider Screen PLC Siemens Inverter Delta Motor Chinese local brand Proximity switch: Pepperl+Fuchs Magnetic switch: AirTac Diffuse reflection: Banner
