Color HDPE Sheet HDPE Plate PE Boards in Large Size

Color HDPE Sheet HDPE Plate PE Boards in Large Size

US$2.10
100-499 KGS
US$2.00
500+ KGS

Basic Info.

Model NO.
HDPE Sheet
Type
Thermoplastic Pipe
Color
Color
Hollow
Solid
Shape
Rectangle
Usage
Engineering Plastic
Size
1200X2400mm, 1000X2000mm, 1500X3000mm, 1500X4000mm
Width
as Reqeust
Length
as Request
Thickness
0.4- 60 mm
Transport Package
Wooden Pallet
Specification
SGS, ISO9001
Trademark
Haiteng
Origin
Jiangsu Yangzhong
HS Code
39201090
Production Capacity
500 Tons Per Year

Product Description

Color HDPE Sheet HDPE Plate PE Boards in Large Size
HDPE, the full name is high density polyethylene. The higher density improves its tensile strength ,surface hardness and heat deflection temperature. It is widely used because of its good impact resistance, nice chemical resistance, low water absorption and good resistance to UV.

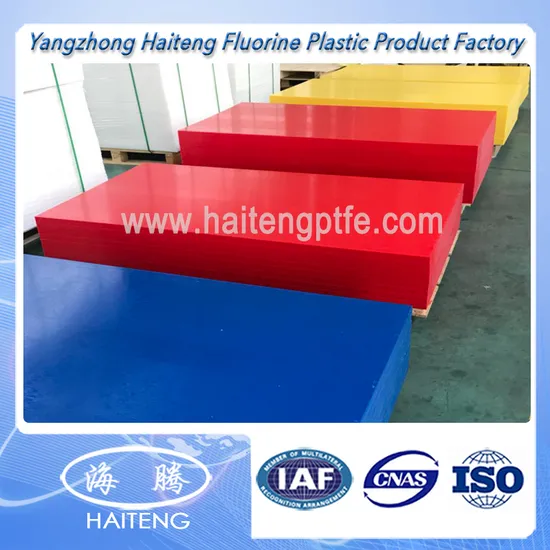

Images
Characteristics
wear resistance, strong anti sliding friction.
impact toughness.
Strong corrosion resistance.
Self-lubrication.
Non-toxic. UHMW is non-toxic and harmless
Low temperature resistance and anti aging.
Surface non adhesion, non fouling.
Excellent crack resistance.
Applications
1.Furnitures, doors ,windows ,chopping boards
2.Water storage box
3.Playground barriers
Technical Data Sheet
PROPERTIES Test Method Unit Value
I.Physical Properties
Density ISO 1183 g/cm3 0.95~0.96
Water absorption 24hrs ISO 62 % 0.01
II.Thermal Properties
Heat deflection temperature - HDT/A ISO 75-2 ºC 55
Min. service temperature ºC -30
Max. service temperature-Long Term ºC 90
Thermal conductivity at 23 ºC DIN 11359 W/(K*m) 0.42
Coefficient of linear thermal expansion ISO 11359 10-4*K-1 1.5
Flammability Rating(6mm thickness) UL 94 - HB
III.Mechanical Properties at 23ºC
Tensile strength at yield ISO 527-2 MPa 27
Tensile strength at break ISO 527-2 Mpa 35
Elongation at break ISO 527-2 % 700
Modulus of elasticity after tensile test ISO 527-2 MPa 1,000
Modulus of elasticity after flexural test ISO 178 MPa 1,000
Hardness - Shore D DIN 53505 64
Charpy impact strength ISO 179 kJ/m2 N. B.
Friction coefficient DIN 53375 0.3
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz IEC 60250 106Hz 2.3
Dielectric loss factor at 1 MHz IEC 60250 106Hz 3.1
Volume resistively IEC 60093 Ohm (Ω) * cm >1016
Surface resisively IEC 60093 Ohm (Ω) >1015
Dielectric strength IEC 60243-1 kV/mm 17
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m

Yangzhong Haiteng Fluorine Plastic Product Factory is a company, which specializes in the production of PTFE, Nylon, POM, PU, UHMW-PE based products for over two decades.We have our own plant and advanced machines,so the best price and fast delivery time can be promised all the time.
