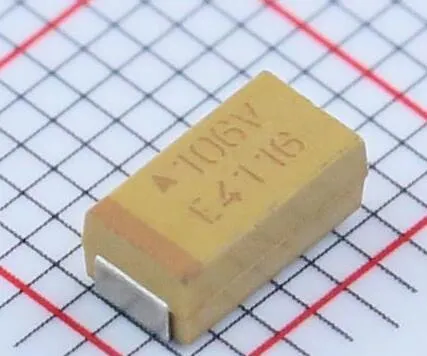

TAJC106K035RNJ Cap Tant Solid 10uF 35V C CASE 10% 2312 capacitor
| US$0.14-200.00 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
TAJC106K035RNJ
Packaging Type
Surface Mount
Capacitance
1-50uf
Structure
Fixed Capacitor
Manufacturing Material
Tantalum Electricity
Electrolyte
Electrolytic
Usage
Low Frequency Coupling
Tuning
Ceramic Capacitor
Filter
Composite Paper Capacitor
MFG.
NEW ORIGINAL
D/C
22+
Package
SMD
Quality
Genuine New Original
Transport Package
Box
Origin
China
HS Code
8542399000
Production Capacity
1000000PCS
Product Description
Description TAJC106K035RNJ: 10 µF Molded Tantalum Capacitors 35 V 2312 (6032 Metric) 1.6OhmMfr. Part#: TAJC106K035RNJ
Datasheet: (e-mail or chat us for PDF file)
ROHS Status:
Quality: 100% Original
Warranty: ONE YEAR
| Product Status | Active | |
| Capacitance | 10 µF | |
| Tolerance | ±10% | |
| Voltage - Rated | 35 V | |
| Type | Molded | |
| ESR (Equivalent Series Resistance) | 1.6Ohm | |
| Operating Temperature | -55°C ~ 125°C | |
| Lifetime @ Temp. | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2312 (6032 Metric) | |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | |
| Height - Seated (Max) | 0.110" (2.80mm) | |
| Lead Spacing | - | |
| Manufacturer Size Code | C | |
| Features | General Purpose | |
| Failure Rate | - |
FEATURES • General Purpose SMT Chip Tantalum Series • 100% Surge Current Tested • 17 Case Sizes Available, Standard and Low Profile Down to 1mm Maximum Height • CV Range: 0.10 - 2200μF / 2.5 - 50V • J-Lead Construction
APPLICATIONS • General Low Power DC/DC and LDO • Entertainment / Infotainment Systems • Height Restricted Design
Why choosing us Located in Shenzhen, the electronic market center of China. 100% guarantee components quality: Genuine Original. Sufficient stock on your urgent demand. Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturing Faster shipment: In stock components can ship the same day . 24 Hours service
Notice:
Product images are for reference only. You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.
