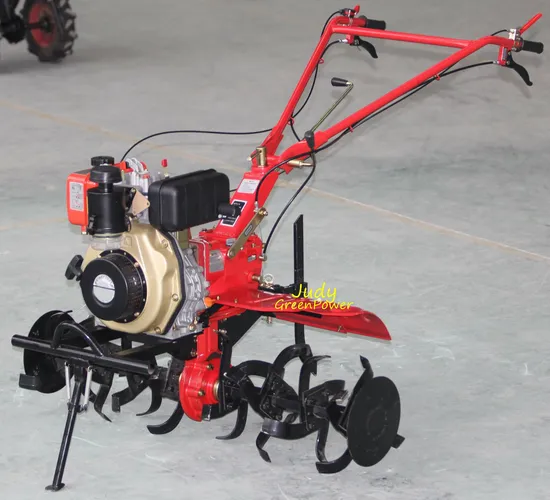

10HP Diesel Rotary Cultivator with D186fa Diesel Engine for Farm Cultivation
| US$345.00-500.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
1WG6.3-120FC
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Can Do as Customers Need
Warranty
1 Year
Transport Package
Export Carton Box
Trademark
OEM
Origin
China
HS Code
84322900
Production Capacity
20000 Per Month
Product Description
Welcome to Zhejiang Green Power factory. For 15 years, our factory is specializes in developing and producing all kinds of Gasoline and Diesel Engine, Gasoline and Diesel Generator, Gasoline and Diesel Water Pumps ,Power tiller,Cultivator, Brush cutter and all spare parts.Our products have been exported to more than 50 countries and areas. Our main markets are in Europe, north America, south America, Africa, Middle East and Southeast Asia area etc.
Most of our items have got various approvals such as CE, EMC and SONCAP certificate, we persistent follow the policy of "observing contracts and keeping promise"and pursue the principle of "sincere, serving customer based on equality & reciprocity".
We are looking forward to going hand in hand with you and co-create resplendence.
Gasoline and Diesel Power Tiller
1. Gear box drive
2. Stronger powerful.
3. Useing for dry field and water feild
4. As usual attached one set dry land blade
5. Light weight, easy operation
| Model | GP4.2Q | GP5.4Q | GP8.2Q | GP3.8C | GP4.0C | GP6.3C | GP7.5C |
| Engine Name | Gasoline | Diesel | |||||
| Engine Model | 170F (7HP) | 177 (9HP) | 188F (13HP) | D173F (5HP) | D178FA(E) (7HP) | D186FA(E) (10HP) | D188FA(E) (12HP) |
| Engine Type | 1-cylinder, 4-stroke ,air-cooled | 1-cylinder, 4-stroke ,air-cooled | |||||
| Power | 4.2kw | 5.4kw | 8.2kw | 3.8kw | 4.0kw | 6.3kw | 7.5kw |
| Speed | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min | 3600r/min |
| Starting mode | Recoil /Eletric | ||||||
| Fule volume | 5.8L | 5.6L | 5.6L | 2.5L | 3.5L | 5.5L | 5.5L |
| Oil capacity | 0.6L | 0.8L | 0.8L | 0.75L | 1.1L | 1.6L | 1.6L |
| Clutsh style | Plate cultch | ||||||
| Type of drive | Gear drive | ||||||
| Gear shifting | 2 0 1 R | ||||||
| Cultivation width | 60-110cm | 70-110 | 70-110 | 60-110cm | 70-110 | 70-110cm | 70-110cm |
| Cultivation depth | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm | 10-25cm |
| Task speed | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h | 1-1.6km/h |
| Productivity | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.035-0.08hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h | 0.05-0.1hm2/h |
| Oil consumption | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 12-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 | 10-15kg/hm2 |
| N.W. | 80kg | 105kg | 115kg | 80kg | 115kg | 125kg | 125kg |
| G.W. | 85kg | 110kg | 120kg | 85kg | 120kg | 130kg | 130kg |
| MEAS | 84*51*63 cm | 91*56*84 cm | 91*56*84 cm | 84*51*65 cm | 91*56*84 cm | 91*56*84 cm | 91*56*84 cm |
Product show
