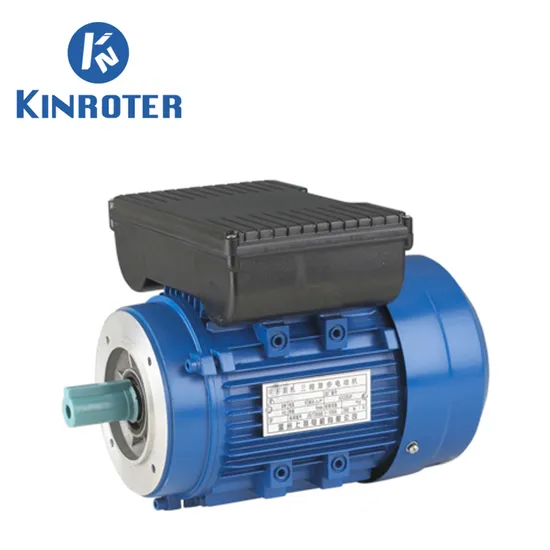

Ml/Yl Series 1/3HP 1/2HP 3/4HP 1HP 2HP 3HP 4HP 5HP with 2, 4, 6pole Two-Value Capacitor Single Phase Asynchronous Motor 220V230V50Hz60Hz

Product Description

Product Description ML series single phase dual- capacitor induction motor is designed and manufactured in accordance with IEC standards, with outer standing performance of starting and operation, low noise, compact dimensions, light weight, easy maintenance etc.These motors are widely used in air compressors. Pumps, fans, refrigeration, medical instruments as well as small machinery, etc, especially for occasion where only single-phase power supply is available.Protection type: IP54Insulation class: FRated voltage: 220VCooling type: IC0141Duty type: Continuous running(S1)Rated frequency: 50HzAny requirements, please feel free to contact with us, we can make products according your specs and supply the competition price.
Product Description
Features: ML series Single Phase Capacitor Start AC Electric Motors / asynchronous motor own High start torque, excellent running performance, little shape, light weight, low noise and easy maintenance. Usage range: ML Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque. Protection Class: IP44/IP54/IP55 Cooling Type: IC0141 Insulation Class: B or F Operation Type: S1 Rated Voltage: 115/230, 220V Rated Frequency: 60 Hz(50Hz) Frame material: Cast iron, cast aluminum and aluminium alloy (only used below 100)

Product Parameters

Basic Data For Single Phase Motor
No.	Brand Name:	Kinroter
1	Model Number:	(YC YL YY MY ML)
2	Type:	Induction Motor
3	Structure:	Asynchronous Motor
4	Place of Origin:	Fuan city ,Fuzhou , Fujian China (mainland)
5	Insulation Class:	Class B F
6	Frequency:	50Hz 60Hz
7	Output Power:	0.06KW-7.5KW
8	Phase:	Single Phase
9	Pole:	2P, 4P, 6P
10	Wire:	100% copper
11	Protection Class:	IP44/IP54
12	Cooling Method:	IC411
13	Duty:	S1 (continuous)
14	Certification:	ISO, CE, CCC
15	Protect Feature:	Totally Enclosed
16	AC Voltage:	110V 220V 230V 240V
17	Ambient temperature:	-15°C≤0≤40°C
18	Altitude:	Not exceed 1000m
19	Mounting Type:	B3, B5, B35, B14,B34
20	Standard:	Confirm to IEC international standard
21	Installation:	we will send detailed instructions together with the Motors
22	Packaging Details:	Packed with export requirement protect the motors and convenient for transport.
23	Delivery Details:	25-30 Days

Technical Data

Technical Data (220V/50Hz)

Type	Power		Current (A)	Power Factor (cosΦ )	Eff (%)	Speed (r/min)	Tstart/Tn(Time)	Ist/In	Tmax/Tn
	Hp	kW
ML711-2	0.5	0.37	2.6	0.95	68	2760	2.2	6.5	1.7
ML-712-2	0.75	0.55	3.71	0.95	71	2760	2.2	6.5	1.7
ML-801-2	1	0.75	4.92	0.95	73	2780	2.2	6.5	1.7
ML-802-2	1.5	1.1	7.02	0.95	68	2780	2.2	6.5	1.7
ML-90S-2	2	1.5	9.32	0.95	77	2800	2.2	6.5	1.7
ML-90L-2	3	2.2	13.5	0.95	78	2800	2.2	6.5	1.7
ML-100L-2	4	3	18.2	0.95	79	2820	2	7	1.7
ML-112M-2	5	3.7	22.10	0.95	80	2820	2	7	1.7
ML-711-4	0.33	0.25	1.9	0.95	63	1360	2.2	6.5	1.7
ML-712-4	0.5	0.37	2.64	0.95	67	1360	2.2	6.5	1.7
ML-801-4	0.75	0.55	3.76	0.95	70	1380	2.2	6.5	1.7
ML-802-4	1	0.75	4.98	0.95	72	1380	2.2	6.5	1.7
ML-90S-4	1.5	1.1	7.11	0.95	74	1400	2.2	6.5	1.7
ML-90L-4	2	1.5	9.44	0.95	76	1400	2.2	6.5	1.7
ML-100L1-4	3	2.2	13.7	0.95	77	1410	2.2	7	1.7
ML-100L2-4	4	3	18.4	0.95	78	1420	2	7	1.7
ML-112M-4	5	3.7	79	0.95	79	1420	2	7	1.7

Detailed Photos

Our OEM Motors, Diesel generator sets , Alternators are talior made to fit the OEM customer's application. Our based Engineering Design team work with you to ensure the motor meets your individual needs.
All Motors, Diesel generator sets , Alternators may be designed for optional voltages and frequencies.
