Full Series High Quality China Isuzu Garbage Truck
| US$38,000.00-86,000.00 | 1 Piece (MOQ) |
Basic Info.
Volume
5000-25000L
Emission Standard
Euro 4
Transmission Type
Manual
Payload
5-20 Ton
Fuel
Diesel
Drive Wheel
4X2, 6X4
Brand
Isuzu
Models
Small, Medium, Large
Usage
Compression Type
Condition
New
Name
Isuzu Garbage Truck
Engine
4kh1, 4HK1, 6HK1, 6uz1, 6wg1
Transport Package
Naked
Trademark
ISUZU
Origin
China
HS Code
8705400000
Production Capacity
20000/Year
Product Description
FULL SERIES CHINA ISUZU GARBAGE TRUCK,LOADING CAPACITY FROM 5-25 KL,ENGINE HP RANGED FROM 130-460HP,ENGINE 4KH1,4HK1,6HK1,6UZ1 & 6WG1 SERIES,TOTALLY COMPATIBLE WITH JANPAN ISUZU IN BOTH SPARE PARTS AND AFTER SALES SERVICECOMPETITIVE PRICE AND EXCELLENT PERFORMANCE.

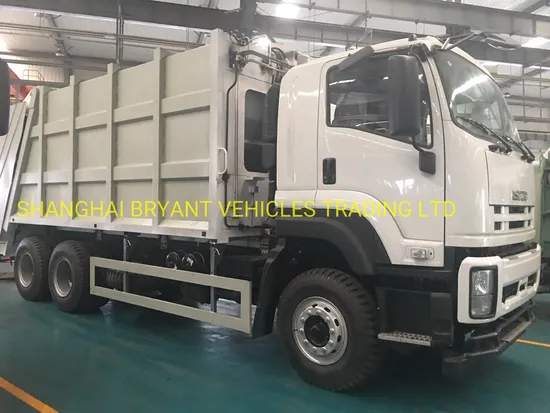

1. TRUCK PIC
2. ISUZU VC46 GARBAGE TRUCK WITH 20M3 COMPACTOR BOX MODEL
| Specifications ISUZU VC46 GARBAGE TRUCK | |||
| Model | QL1250UTCZY Driving type: 6*4 left hand driving | ||
| Engine | Make: ISUZU | ||
| Diesel 4-stroke direct injection diesel engine, electronic control | |||
| Engine model:6UZ1-TCG40, Euro IV emission standard | |||
| 6-cylinder in-line with water cooled, turbo-charging and intercooler | |||
| Maximum output: 350HP-380HP/257KW-279KW | |||
| Maximum torque: 1450 Nm | |||
| Displacement: 9.8 L | |||
| Transmission | FAST 9JS150TA-B, 9 forwards and 1 reverse,manual | ||
| Ratio:12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R) | |||
| Front Axle | ISUZU F075, 7.5 Ton loading Capacity | ||
| Rear Axle | ISUZU RT210,21 Ton loading capacity,speed ratio 5.571 | ||
| Chassis | Frame: U-profile parallel ladder frame and reinforced subframe with size 320×90×8 MM | ||
| Front suspension:12 semi-elliptic leaf spring | |||
| Rear suspension:12 semi-elliptic lea spring | |||
| Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis | |||
| Steering | Power steering, hydraulic steering with power assitance | ||
| Brakes | Service brake: dual circuit compressed air brake | ||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |||
| ABS | |||
| Wheels & Tyres | Tire: 11 pcs 11.00-20 | ||
| Option:11.00R20, 295/80R22.5 | |||
| Driver's Cab | ISUZU Flat roof cab, with two seats, 1 bed, A/C, electric glass, central lock | ||
| Electrics | Operating voltage: 24 V, negative grounded | ||
| Starter: 24 V, 5.4 Kw | |||
| Alternator: 3-phase, 28 V, 1500 W | |||
| Batteries: 2 x 12 V, 165 Ah | |||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |||
| Dimensions mm | Wheel base | 4605+1300 MM | |
| Overall length | 9850 MM | ||
| Overall width | 2500 MM | ||
| Overall height | 3500 MM | ||
| Weight kg | Dead weight | 14600 KG | |
| Rated Loading Capacity | 13900 KG | ||
| Gross vehicle weight(GVW) | 28500 KG | ||
| Front axle loading capacity | 7500 KG | ||
| Rear axle loading capacity | 21000 KG | ||
| Compactor Body | Volume of body(m3) | 20 | |
| Volume of filler(m3) | 2.5 | ||
| Time of one filling cycle(s) | ≤25 | ||
| Lifting time of filler (s) | 8-10 | ||
| Time of discharge (s) | ≤40 | ||
| Pressure of fluid system (Mpa) | 20 | ||
| Front/rear sewage capacity (L) | 250+150 | ||
| Max compression force (kg) | >35000 | ||
