Cak6140 Integrated Automatic Lubrication System CNC Lathe

Product Description

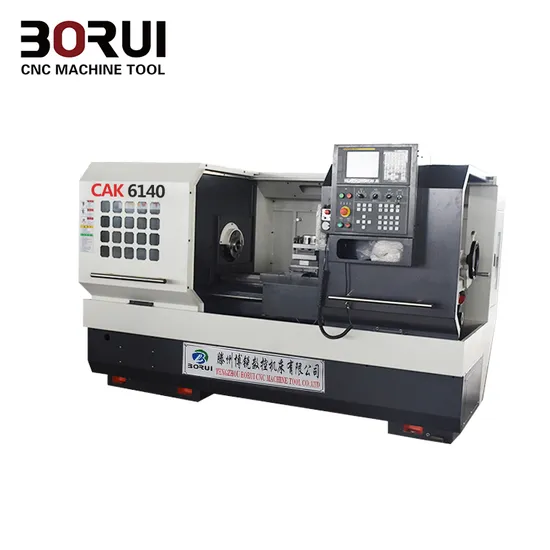

CAK6140 Integrated Automatic Lubrication System CNC Lathe
Product Description
CAK series CNC Lathe machine is an economical, practical type machine tools with high quality.
It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.
The main specification :

SPECIFICATIONS CNC LATHE CAK6140
SPECIFICATION		CAK6140
Max .Swing over bed		400mm
Max .Swing over carriage		210mm
Max .length of work piece		750/1000/1500/2000/3000mm
Width of bed		400
Spindle taper		MT6, [φ90 1:20 (B type)]
Chuck size		C6, [D8 (B type)]
Spindle Bore dia.		φ52, [φ80mm (B type)]
Spindle speed		Independence spindle: 100-1600rpm 3-step speed change: 21-1600rpm (I: 162-1600rpm, II: 66-500rpm, III: 21-150rpm)
Tailstock center travel		150mm
Tailstock sleeve taper		MT5
Positioning accuracy		±0.015mm
Repositioning accuracy		±0.006mm
X/Z rapid traverse		4/6 m/min
Spindle motor		7.5kw
Packing dimensions (L×W×H mm)	Packing size for 750mm	2550×1550×1700mm
	Packing size for 1000mm	2750×1550×1700mm
	Packing size for 1500mm	3250×1550×1700mm
	Packing size for 2000mm	3750×1550×1700mm
	Packing size for 2200mm	4130×1550×1700mm
	Packing size for 3000mm	4900×1550×1700mm
G.W. / N.W. (kg)	G.W. / N.W. for 750mm	2800 /2100kgs
	G.W. / N.W. for 1000mm	2900 /2200kgs
	G.W. / N.W. for 1500mm	3150 /2300kgs
	G.W. / N.W. for 2000mm	3350 /2700kgs
	G.W. / N.W. for 3000mm	4100 /3500kgs

Standard Accessories:
1. Frequency Spindle
2. 250mm 3-jaw Manual Chuck
3. 4-station turret
4. Manual Tailstock
5. Full-splash Guard
6. Stepless speed change
Optional Accessories:
1. Hydraulic Solid Chuck
2. Hydraulic Hollow Chuck
3. Hydraulic tailstock
4. 3-step speed change by manual
5. Auto 3-step speed change
6. 6-station turret
7. Center Rest and follow rest
8. 4-Jaw chuck
The main specification :
1.Big torque ,high precision spindle
2.Hydraulic shift ,easy operate
3.Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy
4.Vertical 4 position electric toolpost with high positioning accuracy

Details Display

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
