360 Degree 3D Panoramic Car Camera Safe Driving Assistance 360 Bird View 4-Way DVR 1080P Image Recorder
Basic Info.
Model NO.
BC-222
Screen Size
9 Inch
Voltage
9-36V
Support Format
MP4
Video Output
HDMI
Internal Memory
H5tq4g63efr-Tecr
Flash
W25n02gvze2g
Video Chip Processing
Nvp6124b/Tp9930
Video Decoding System
H.264
Video Data Compression Ratio
>5:1
File Storage Format
H.264
Storage Medium
U Disk/SSD
Operating Voltage
DC9V-36V
Start-up Time
Cold Start 5s
Video Format
PAL
Photopixel
1920(H)*1080(V)
Image Sharpness
1920tvl
Video Signal
Ahd
Minimum Illumination
0.01lux
Field Angle
Horizontal 180°
Specification
1024 X 600
Trademark
BOCHi
Origin
China
HS Code
8528591010
Product Description

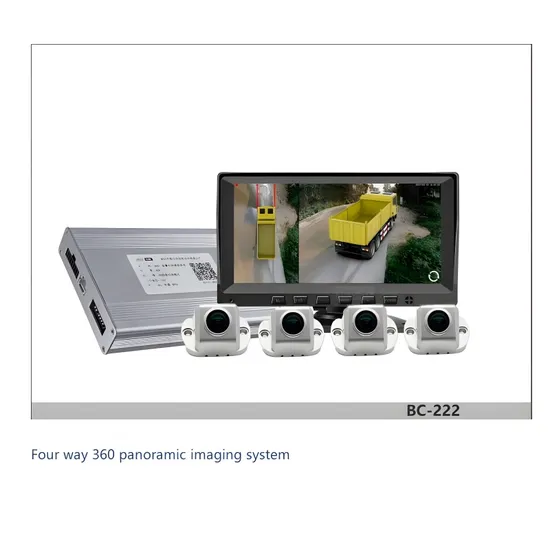

This equipment is a set of 4 wide-angle cameras installed around the vehicle that can cover all the field of view around the vehicle, and the multi-channel video images collected at the same time are processed into a 360-degree top view of the body around the vehicle, which is transmitted to the screen of the center console in real time. It is suitable for buses, cranes, long trailers, container trucks, fire trucks, forklifts, excavators and other vehicles. The IP69K is waterproof and can provide a 360° panoramic bird's eye view for various vehicles, even in harsh environments, so that 360° no-dead Angle monitoring is achieved. With powerful video recording function.>> 2025 Hualong Machinery Automatic Granite Cutter Stone Cutting Machine 5 Aixs Italin Esa CNC System Marble Cutting with Good Service
