Cnm Yjg150 Galvanized Sheathing Ducts Making Machine

Product Description

Post Tension Spiral Corrugated Duct Machine
Features of CNM-YJG150 Corrugated Pipes Making Machine 1. It is a new generation corrugated pipes making machine in China.
2. 5 Rollers, the before old machine is only 4 rollers.
3. Forming duct mould head is made of high glass steel, not easy happen damages though you use it many years.
4. We add the fans onside of machine for further cooling after long time working.
5. With intelligent Gear Box to control rolling duct speed, speed can be adjustable.
6. Good quality with best price.
7. Exported Countries: Thailand, India, Pakistan, Bolivia,Mongolia, Cambodia, Netherlands, etc.
8. Warranty Time for Machine: 15 Mouths, you can use it for many years without happen any serious problems.
Round Metal Duct Made by Our Duct Making Machine
Techncial Data for CNM-YJG150 Corrugated Pipes Making Machine

Diameter Of Ducts	35-150mm(Or Larger, Customized)
Material:	Galvanized or Non-alvanzied Steel Strip
Material Thickness:	0.2mm to 0.3mm
Material Width:	36mm
Pitch Of Spiral	23mm
Seam Model	Double Lock Seam
Producing Metal Duct Spee	13.5m/min For 35 to 58mm Diameter Metal Duct(Adjustable)
	12m/min For 60 to 85mm Diameter Metal Duct(Adjustable)
	11m/min For90 to 115mm Metal Duct(Adjustable)
	10/min For Diameter Of 120 to 135mm Metal Duct(Adjustable)
Voltage	Three Phase, 380V, 50HZ/ Single Phase, 220V, 50HZ
Production Capacity	About 5000 meters one day
Features	Can do continuous work(work 24 hours),saving labour, saving raw materials and cost
Main Power	3kW, 7kw, 11kw, can be selected
Cutting Machine Motor	2.2KW
Lubricant Pump Motor	40W
Weight	850KG
Dimension:	1.7mx1.3mx1.5m

CNM-ZGB Flat Sheathing Ducts Making Machine
Flat Metal Duct Made by Our Flat Duct Machine

ZGB flat metal ducts machine is a equipment to extrude round metal ducts make them become flat metal ducts.
Flat duct is used for post tension slab in buildings and brirdge construction, the common size is 50x20mm,60x20mm, 70x20mm, 80x20mm, 90x20mm, and we also supply flat duct making machine for making flat duct size: 40x80mm, 50x100mm.

CNM-ZGB Flat Sheathing Ducts Making Machine Technical Data :

Model	CNM-ZGB Flat Duct Making Machine
Speed	Speed can be adjustable
Making Flat Ducts Specification	Flat Duct Width (mm) (Can be Adjustable)	Flat Duct Height( mm) (Can be Adjustable)
	50	20
	60	20
	70	20
	80	20
	90	20
	80	40
	100	50

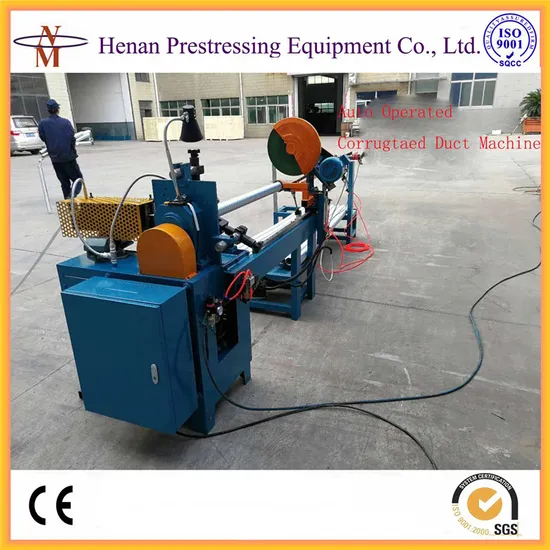

ROUND AND FLAT Post Tension Fully Auto Operated Corrugated Metal Pipe Forming Machine
OUR ADVANTAGES
Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.
Our Product Ranges:
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Prestressing Equipment: Monostrand Stressed Jack and Pump. Multi-strands Post Tension Jack and Pump, YH30 Onion Jack, Corrugated Duct Making Machine, Flat Duct Machine, GYJ500A Compression Fitting Machine, Grouting Pump and Mixer Machine, Intelligent Tension System.
5. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter
New Generation Post Tension Spiral Metal Duct Making Machine
1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. Inner Diameter Duct you need.
2. Voltage for machine.
3. What is your required Destination Port.
4. Order Quantity.

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 1 Set.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.
