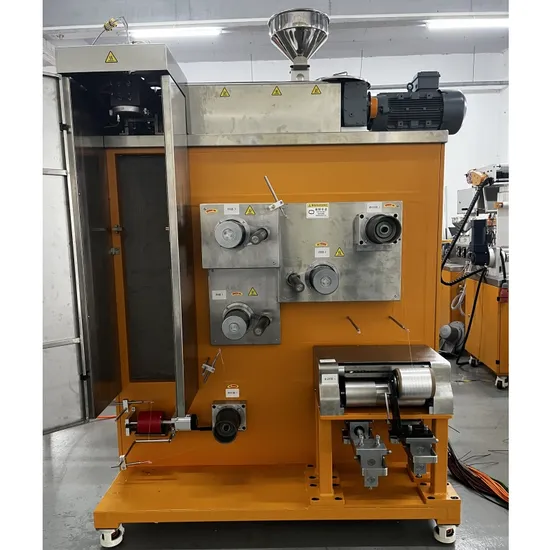

Lab Single Screw Melt Spinning Extrusion Line

Product Description

Performance characteristics of small spinning machine:
* High precision: with high spinning accuracy, it can produce fine and uniform fibers.
* Energy saving and high efficiency: usually adopt advanced energy-saving technology, which can reduce energy consumption and improve production efficiency.
* Good stability: it has stable working performance and can run continuously for a long time without failure.
* Compact structure: usually compact design, small footprint, suitable for production in limited space.
* Easy to operate: usually equipped with intelligent control system, easy to operate and easy to use.
* Wide range of application: suitable for a variety of fiber raw materials, can meet different needs of spinning processing.
* Easy maintenance: Maintenance is relatively simple, easy to carry out daily maintenance and cleaning.
Application range of small spinning machine:
* Fiber materials research: Laboratory spinning machines are widely used in the research and development of fiber materials, including natural fibers, synthetic fibers and specialty fibers.
* New material development: In the field of materials science and engineering, laboratory spinning machines are often used for the development and performance testing of new fiber materials, such as nanofibers and biodegradable fibers.
* Fiber structure analysis: Laboratory spinning machines can be used to simulate the spinning process of fiber materials in order to analyze fiber structure, morphology and properties.
* Textile performance evaluation: Laboratory spinning machines can be used to produce textile samples with specific fiber structures and properties for performance evaluation and testing.
* Teaching and training: Laboratory spinning machines are also used in teaching and training laboratories such as universities and research institutes for teaching and academic research.
Technical parameters of small spinning machine:

Model	HTES-20S	HTES-25S	HTGD-20S
Screw	single screw	single screw	double screw
Screw diameter (mm)	20	25	20
Motor power (kW)	3	4	5.5
Yield (kg/h)	0.5~3	0.5~5	0.5~10
Melt pressure measurement range (Mpa)	0~35	0~35	0~35
Screw length to diameter ratio	28:1	28:1	40:1
Maximum speed (rpm)	120	120	500
Max. Temperature (ºC)	350 (optional 450)	350 (optional 450)	350 (optional 450)
Temperature control accuracy (ºC)	±1	±1	±1
Pressure display accuracy (Mpa)	±0.01	±0.01	±0.01

FAQ: 1.Where is our factory? Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us! 2.Why choose us? Hartek:(1)We have complete system of designing of our equipment. (2)We can provide the perfect management solutions. (3)We master the core techonology in this extruder industry. 3.What's the payment method? Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment. 4.Can we see the running machine in your factory? Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment. 5.How long of the warranty time? Hartek:We offer you high quality machines with 12 months guarantee. 6.What is your packaging? Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes. 7.How can we check the machines before delivery? Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
