Lxshow New Fiber Laser Cutting Machine for Sale in Jinan for Sale Near Me

Product Description

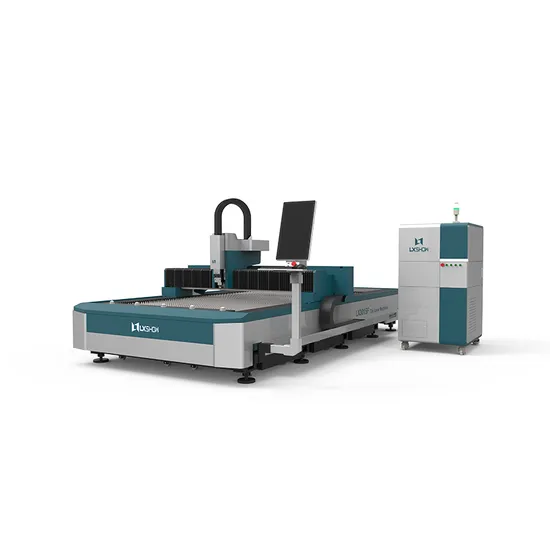

LX3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Main Parts The RAYTOOLS AG
comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CONTROLLER
BOCHU FSCUT 2000C
LASER GENERATOR
JPT/IPG/NLIGHT/RAYCUS
Customizable
BED FRAME

Our Advantage
(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Sample
Parameter

Equipment Specification
Model	LX3015F	LX4015F	LX4020F	LX6020F
Cutting Area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm
Laser source	Raycus OR other Brand	Raycus OR other Brand	Raycus OR other Brand	Raycus OR other Brand
Max Moving Speed	120m/min,Acc=1.2G	120m/min,Acc=1.2G	120m/min,Acc=1.2G	120m/min,Acc=1.2G
Position Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading(KG)	700	1300	1900	1900
Max Loading(KG)	≤4000	≤5000	≤5500	≤600

Our Factory
Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.

Our Customers

After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.Q: Payment terms?A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.Q: I don't know how to use after i receive or i have problem during use, how to do?A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.Q: I don't know which one is suitable for me ?A :just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.
