Good Price 3 in 1 Beverage Juice Bottle Blowing Filling Packing Production Line for 200ml ~1000ml Bottles

Product Description

Product Description

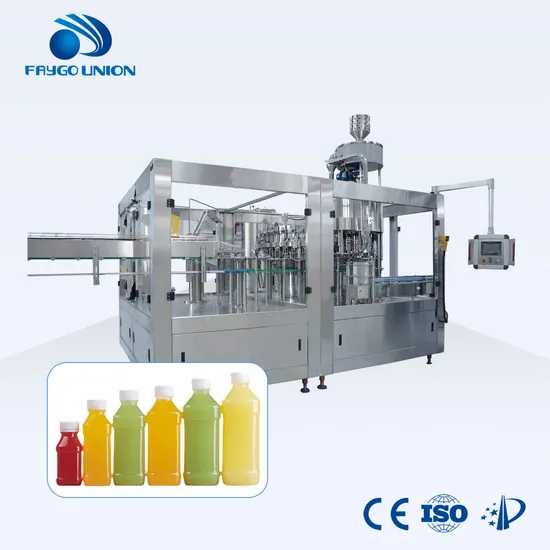

Good price 3 in 1 beverage juice bottle blowing filling packing production line for 200ml ~1000ml bottles

Automatic Water Filling and Packaging Machine

This automatic water filling machine is ideal equipment to produce bottled drinking water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2000ml meanwhile few changeover is needed for differen bottle volumes. Machine is built by excellent stainless steel with high standard anti-corrosion. Machine design follows the Germany and Italy technical. Compared with the traditional machine, our machines is of high processing precision and more stable operation. The This series of filling machine capacity varies from 6000BPH to 32000BPH.
Advantages
1) blowing-filling-capping with one machine,simplify the production.
2) no need bottle rinse
3) no need long air conveyor
4) achieve savings on space,power and operator fees
Product Details
This model of filling machine is designed for the low/middle capacity and small factory. It takes low buying cost, low water and electricity consumption and few space occupation into consideration at the beginning. It can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.

Washing part
Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.
Filling part
Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.
Capping part
Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.
Product Parameters
Technical Data:

Model	XGF8-8-3	XGF12-12-6	XGF18-18-6	XGF24-24-8
Rinsing head	8	12	18	24
Filling head	8	12	18	24
Capping head	3	6	6	8
Capacity (based on 500ml)	2000-3000BPH	4000-5000BPH	6000-8000BPH	8000-10000BPH
Diameter of bottle	φ50-φ100mm
Height of bottle	160-340mm
Bottle volume	0.3-2.0L
Machine power	2.7 KW	3.5 KW	4.8 KW	5.8 KW
Power supply	380V 3 phase, 50Hz or customized
Weight	2100kg	2300kg	2800kg	4800kg
External dimensions (L×W×H)	2100×1700×2100mm	2200×1800×2100mm	2400×1950×2100mm	3200×2100×2600mm

Features:
1. intelligent contact screen, human design, easy operation.
2. Imported filling valve, avoiding drop leaking, accurate filling quantity.
3. Program logic controller(PLC), easy for changing size or modifying parameters.
4. Pneumatic elements are all imported, stability and reliability.
5. Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
6. Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing
7. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8. Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.
9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. The whole machine is designed according to requirements of buyer's.
Welcome to contact us to know more!
One Stop Station Services
1)Installation and Commissioning: After debugging the machine in seller's factory, after checking out and signature of two sides, then we can shipping the machine.
2)Warranty: We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send at once, free of charge.
