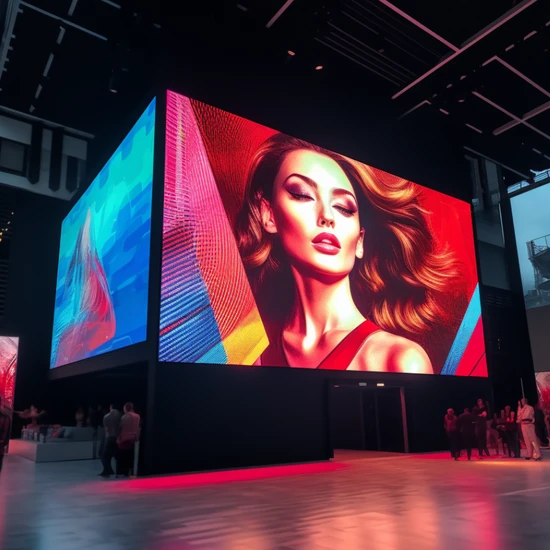

Custom Advertising Rental LED Outdoor Screen P5 Outdoor LED Video Wall Displays LED Screen
Basic Info.
Model NO.
CanYi-P5
Pixel Pitch
5mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
350W / m²
Pixel Density
44321 dot / m²
Scanning Mode
1/8 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC
Point Distance
P5
Keyword
Outdoor LED Video Wall
Use
Advertising Publish, Retail Store, Shopping Mall
Color
Full Color
Accessories
Module
Supplier Type
Original Manufacturer, ODM, Agency, Retailer
Function
Sdk
Product Name
LED Display
Cooling System
Air Conditioner
Box Material
Die-Cast Aluminum
Usage Method
Waterproof Box
Media Available
Datasheet, Photo, Eda/CAD Models, Other
Resolution
104xd104ots
Trademark
CanYivision
Origin
Guangdong, China
HS Code
8528591090
Product Description
Products Parameter| Pixel spacing | 2.5mm | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm |
| LED Configuration | SMD1515 | SMD1515 | SMD2525 | SMD2525 | SMD2525 | SMD3535 | SMD3535 |
| Pixel Density/sqm | 160000 dots | 111111dots | 62500dots | 40000dots | 27777dots | 15625dots | 10000dots |
| Module Size/mm | 320*160 | ||||||
| Cabinet Size | 960x960mm | ||||||
| Cabinet Resolution | 384x 384dots | 312x 312dots | 240x240dots | 192x192dots | 159x159dots | 120x120dots | 96x96dots |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Brightness /sqm | 4000~8000 nits | 4000~8000 nits | 4000~8000 nits | 4000~8000 nits | 4000~8000 nits | 4000~8000 nits | 4000~8000 nits |
| View Angle° | 140°(HM) | 140°(HM) | 140°(HM) | 140°(HM) | 140°(HM) | 140°(HM) | 140°(HM) |
| Gray Scale/bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Max. Power Consumption | 860 W/sqm | 786W/sqm | 840 W/sqm | 750 W/sqm | 790 W/sqm | 549 W/sqm | 650 W/sqm |
| Ave. Power Consumption | 260W/sqm | 235W/sqm | 235W/sqm | 225 W/sqm | 238 W/sqm | 160 W/sqm | 230 W/sqm |
| Refresh Frequency | 1920~3840 Hz | 1920~3840 Hz | 1920~3840 Hz | 1920~3840 Hz | 1920~3840 Hz | 1920~3840 Hz | 1920~3840 Hz |
| Operating Power | AC 96~242V 50/60Hz | ||||||
| Operating Temperature | -40"C ~+60"C | ||||||
| Operating Humidity | 10~90%RH | ||||||
| Operating Life | 100000Hours | ||||||
