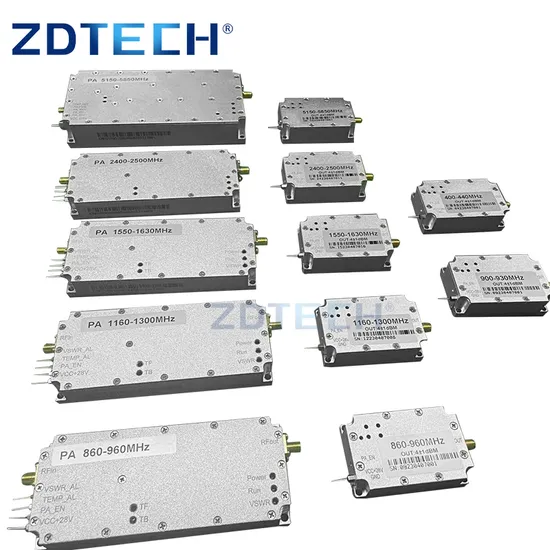

RF Power Amplifier 1100-1900MHz Anti-Drone Jammer Module
Basic Info.
Model NO.
ZD-PA-1119-20W
Support Network
CDMA
Information content
Data
Certification
RoHS
Condition
New
Frequency Band
500-6000MHz
Working Voltage
12V-30V
Output RF Port
SMA-F
Noise Type
Dds Sweep
Vswr
1.5
Transport Package
by Box
Specification
23x26x10cm
Trademark
ZD TECH
Origin
China
HS Code
8543209090
Production Capacity
2000pieces/Month
Packaging & Delivery
Package Size
25.00cm * 26.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
1. Specs
| Item name | Technical parameters |
| working frequency | 1100-1900 MHz |
| Saturated power output | 43±1dBm |
| Gain | 43±2dB |
| In-band flatness | <3 dB |
| Working current | <4A |
| Input and output VSWR | ≤1.5 |
| Out-of-band spurs | 9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz |
| Maximum lossless input | +10dBm |
| Operating Voltage | DC+28V |
| Power supply interface | Feed-through capacitor |
| RF port | RFIN /RFOUT : SMA-KFD |
| Monitoring interface | Feed-through capacitor |
| Operating temperature | -10~+55ºC |
| Relative humidity | 5%~95%,No condensation |
| Storage temperature | -25~+65ºC |
