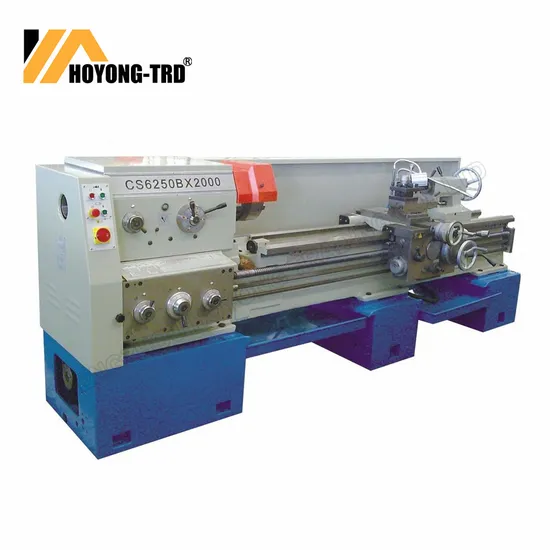

Universal Horizontal Gap Bed Lathe Machine CS6250b CS6240b CS6250c CS6266b
| US$7,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6250B CS6240B CS6250C CS6266B
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
400mm
Swing Over Cross Slide
225mm
Width of Bed
330mm
Spindle Bore
65mm
Spindle Taper
Mt6
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
GAP BED LATHE FEATURES:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
FEATURES:
| SPECIFICATIONS | UNIT | CS6150 CS6250 CS6150B CS6250B | CS6150C CS6250C | |||
| Capacity | Max. swing dia. over bed | mm | Φ500 | Φ500 | ||
| Max. swing dia.over cross slide | mm | Φ300 | Φ300 | |||
| Max. swing dia.in gap | mm | Φ710 | Φ710 | |||
| Max. workpiece length | mm | 750/1000/1500/2000/3000 | ||||
| Max.turning length | 700/950/1450/1950/2950 | |||||
| Spindle | Spindle bore diameter | mm | Φ52 Φ82 (B series)Φ105(C series) | |||
| Taper of spindle bore | MT6 Φ90 1:20 (B series) Φ113(C series) | |||||
| Type of spindle nose | no | ISO 702/III NO.6 bayonet lock, ISO 702/II NO.8 com-lock type(B&C series) | ||||
| Spindle speed | rpm | 24 steps 9-1600 | 12 steps 36-1600 | |||
| Spindle motor power | KW | 7.5 | ||||
| Tailstock | Diameter of quill | mm | Φ75 | |||
| Max. travel of quill | mm | 150 | ||||
| Taper of quill (Morse) | MT | 5 | ||||
| Turret | Tool O.D. size | mm | 25X25 | |||
| Feed | Max. X travel | mm | 145 | |||
| Max. Z travel | mm | 320 | ||||
| X feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 | |||
| Z feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.63-2.52 | |||
| Metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 | |||
| Inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 | |||
| Module threads | πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 | |||
| Diametric pitch threads | t.p.i.π | 42 kinds 56-1/4 | 24 kinds 56-4 | |||
| Dimensions | mm | 2382/2632/3132/3632/4632 | ||||
| 975 | ||||||
| 1230 | 1270 | 1270 | 1450 | |||
| Weight | Kg | 1975/2050/2250/2450/2850 | 2050/2100/2300/2500/2900 | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | |
