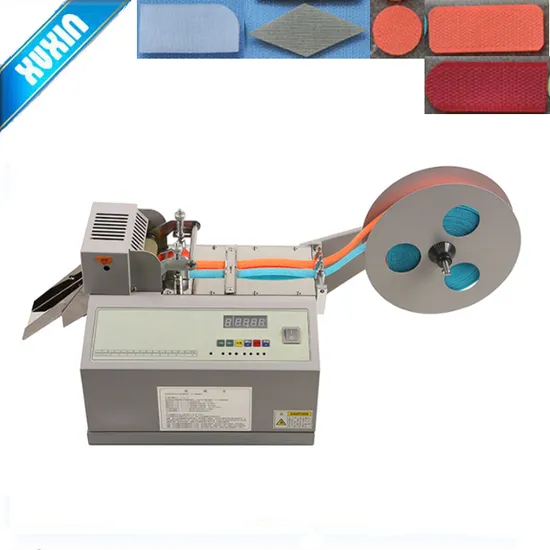

Automatic Hook and Loop Tape Cutting Machine

Product Description

Automatic belt cutter,Tape cutting machine,conveyor belt cutting machine X-01C


Product Description Features
* High speed: It can cut 100~120 cut per minute. (50mm long)
* Accuracy: Cut-length is accurate cwing to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works autoally only by setting length and quantity
* Automatic stopper: It stops autoally if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
* Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

Specifications
* Available Width: 5 ~ 110mm
* Available Length: 1 ~ 99999mm
* Knife: Cold cutting
* Speed: 120pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 220W
* Measurement & Weight: 38*32*30cm (21kg)
Other model specification

Machine	Automatic tape cutting machine		Ultrasonic label cut machine	label cut & folding machine
Model :	X-03HC	X-8U	X-12U	X-12CF
Type:	Electric	Ultronsic	Ultronsic	Ultronsic or hot & cold knife
Cut Shape:	Straight ; If also can cut mould, Can cut oval ; bevel; Round and son on	It can cut different shape base on your requirement	It can cut straight But have eye sensor, It can cut label	It can cut and folding shape
Cut Width:	0.1---90mm	0.1---100mm	0.1---70mm	1-80mm
Cut length:	3---99999mm	3---99999mm	3---99999mm	3---99999mm
Cut Speed :	120pcs/min	200pcs/min	500pcs/min	200pcs/min
Accuracy:	± 0.1mm	± 0.1mm	± 0.1mm	± 0.1mm
Power Supply:	AC220V 50Hz 300W
Size & Weight	48*48*50Cm 23KG

Detailed Photos Apply for
Relate Machines
Company Profile
Our Advantages
After Sales Service We Provide * Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines. Service * QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
