PVC Face Mask Melt-blown Non Woven Fabric Computer Cutting Machine Manufactures Paper Roll To Sheet Cutter Machine

Product Description

Product Description

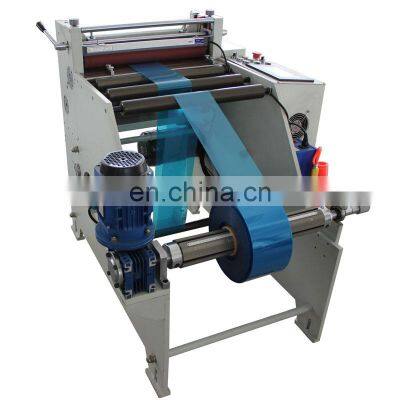

Product DescriptionProduct DescriptionSpecification360mm automatic paper roll to sheet cutting machine FUNCTIONAL CHARACTERSTICSThis machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,which will be easy to load and unload. PurposeIt is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets,electronic tape and various inch setting, entirely broken and partially broken electronic materials. Item No DP-360 PRICE shipping term (FOB Shanghai) Max Feeding Width ( mm ) 360 Main Engineer Power ( w ) 750 Speed ( m/m ) 120 Size ( mm ) 1150*1100*1120 Weight ( kg ) 350 Precision ( mm ) ±0.10 Power 380V 50HZ Shaft diameter 3 inch / 76mm unwinding paper diameter 600mm max (unwind like below)Advantage of machine DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when running it is whole part of steel sheets , not welding together PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part Korea company made Cutting motor ------------- Taiwan Tonglee gear motor Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety 12 month electronic parts guarantee after machine arrived your place machine are use famous brand of electric parts which are easy to maintenancePacking & DeliveryTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company ProfileBUYING GUIDE1, material name :2, material roll diameter :3, material roll width :4, material roll weight :5, maximum and minimum length required to cut
