2018 Fast Dry Type Sandwich Panel Lamination Machine

Product Description

We engaged in HONEYCOMB LAMINATING CORE AND CARDBOARD MACHINE, EDGEBOARD MACHINE, SLIP SHEET MACHINE, DUNNAGE BAG MACHINE, FLAT BOARD MACHINE, SLITTING MACHINE, etc, OEM is avaliable and welcome.
2016 Fast Dry Type Sandwich Panel Lamination Machine
2016 Hot Sale Honeycomb Paper Board Equipment
Production Name
Automatic honeycomb laminating cardboard making machine
Package & Delivery
1.Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days

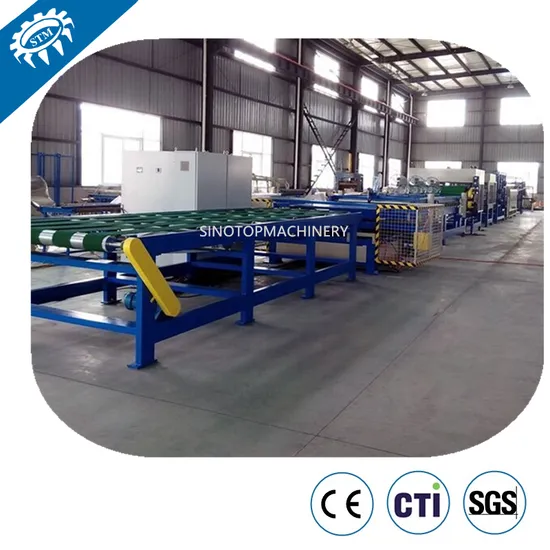

Production Line
1.ENDLESS HONEYCOMB CORE: Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Stacking
2.LAMINATION: Paper Roll Setting--Core loading--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
3.PAPER HONEYCOMB PANEL in one process: Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Conveyor--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
Techinic Parameter
Min width: 1300mm/1600/1800/2000/2200mm
Max automatic cutting length:10m
Speed: 25m/min
weight: ≥120g/m
Thickness of honeycomb cardboard:5mm-100mm
Cutting accuracy:+ 1mm/min
Total power: 128kw(including heating part ), 80kw without heating
Moisture content: ≤14%
Way of heating: by electricity
Hydraulic pressure paper holder, controlled by air pressure
Multilayer gluing system for double sides to both core and surface paper
Advantage of HONEYCOMB CORE MACHINE
1.honeycomb machine adopts full Hydraulic shaftless paper holder, it is more convenient to operate; and it uses automotive-type disc brake structure which can stable control the tension. The overall uses of casting structure, the mechanical properties more stable.
2. high speed horizontal cutting honeycomb machine, which doesn't touch the gluing line while cutting, and the core paper feeding into the cutter are stable. We use imported cutter which is durable, and imported high-precision rails which has high cutting precise.
3.The Synchronization cutting mechanism adopts servo tracing which has high cutting accuracy; it adopts Taiwan ball screw which makes the walking freely; By using imported high-precision rails, it can move flexibly and cut with high-precision.
Warranty
One year warranty, and whole life after-sale service. 24 hours service.
Main Products
Honeycomb machine, edge board machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat board machine, gluing machine, corrugated machine, etc
Relevant products
Honeycomb core, honeycomb cardboard, corner board, edge board protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, airbag.
