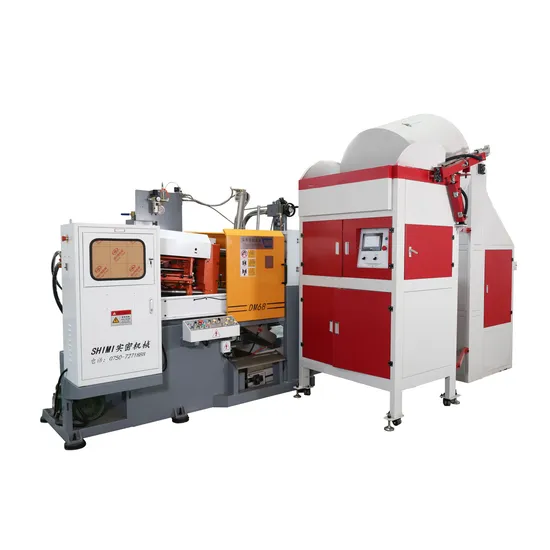

68t Zinc Zamak Alloy Injection Machine Hot Chamber Die Casting Machine

Product Description

Product Description
Pilot operated overflow control hydraulics Intelligent dynamic operation, high energy saving rate, clear high pressure throttling, reduce oil temperature.
Clamping system Four large bar guide pillars, using high-tensile steel as raw materials, the surface is hardened by high-frequency heat treatment, and the outer layer is re-plated with hard chrome, which has high wear resistance and prolongs the service life of the machinery.
The three major formwork and machine hinges are made of high-strength ductile iron, and the five-point expansion structure of the toggle connecting rod provides strong clamping force.
The clamping action is divided into multi-level pressure and speed control and low-pressure clamping protection function.
The hydraulic ejection design of the cylinder provides balanced ejection force and reduces the factors of product ejection deformation.
Adopt central electric lubrication system, advanced point-by-point quantitative lubrication. Ensure that the lubrication points near and far are evenly lubricated, and there are liquid level and pressure alarm functions to ensure the good lubrication effect of the machine.
The machine is equipped with mold cooling water contacts, which is convenient for installation and operation.
Hydraulics System An independent high-speed accumulator is adopted, which has sufficient storage capacity to ensure stable injection force.
The injection speed can be controlled individually, with sensitive response and smooth action.
The injection action is controlled by a certain speed, with a specific hydraulic system, which is suitable for various product process requirements with high surface requirements.

The maximum air injection speed of high-speed injection is stable, which is the guarantee of producing high-quality castings.
Low hydraulic impact, high repeatability, suitable for the production of high density castings.
Capsule energy storage structure can improve the action reaction speed and improve the overall production efficiency and product quality requirements of the injection system.
Adopt fast clamping oil circuit system to improve production efficiency.

Injection system An independent high-speed accumulator is adopted, which has sufficient storage capacity to ensure stable injection force.
Wide range of injection speed adjustment.
The maximum air injection speed of high-speed injection is stable, which is the guarantee of producing high-quality castings.
Low hydraulic impact, high repeatability, suitable for the production of high density castings.
Airbag and piston energy storage structure can improve the action response, improve the integrity of the injection system, and reduce the oil leakage point.
Electrical control systems In order to meet the needs of customers in different regions, there are different options for customers to choose from for the control system and touch screen: Siemens, Delta or Omron control system; Siemens, Delta, or WEINVIEW touch screens. Easy to operate, rich function pages, to meet the control of the die-casting process.
Powerful parameter storage function, which is convenient for future production call, improves production efficiency, and maintains consistent product quality.
The fuselage line is made of oil-resistant and temperature-resistant and covered steel wire protection wires, which are well protected even in harsh environments to ensure normal production.

Finished pictures

Product Parameters

ITEM	DM68T
Clamping Force	680KN
Clamping stroke	215mm
Ejecting Force	40KN
Ejection Stroke	45mm
Mold thickness	120-330mm
Platen Size (W*H)	565x500mm
Tie bar spacing(W*H)	360x320mm
Tie bar Diameter	63mm
Injection Position	0mm
Injection Force	60KN
Injection Stroke	110mm
Stroke far from nozzle	0-330/270mm
Plunger diameter	45mm
Shot Weight/Zinc	0.9Kg
Crucible Capacity / Zinc	480Kg/Zn
Motor Power	7.5BKW
System operating pressure	9Mpa
Furnace consumption (Oil)	3.5Kg/h
Furnace consumption (Electric)	18Kw
Oil Tank Capacity	200L
Nozzle Heating power	2Kw
Size of Machine (Fast Cup Type)	3300*1580*2060mm
Size of Machine (Fast Pot Type)	3150*1580*2060mm
Weight of Machine	3400 KG

Core Competitiveness
1.Better quality and good marketing team
2.Production
3.Testing equipment
4.layout of sales outlets
5.rapid response to after-sales service
1.Adopt the fast differential regeneration mold- clamping hydraulic system, the movement of mold clamping/open runs smoothly and quickly, improving theroduction efficiency.
2.Standard hydraulic core-pulling valve is one group to movable die platen.
3.Delta and Omron control system, Weinview touch screen, easy to operation, substantial functional pages to meet the diecasting process control.
4.Powertul parameter storage function, convenient for production calls, improve production efficiency , keep product quality consistent.
5.The fuselage line is oil-resistant and heat-resistant and covered with steel wire mesh, for very good protection even in the harsh environment, ensure.

Related configurations
ShiMi Provide Automatic Production Line of Zinc Alloy Hot Chamber Die Casting Machines
Packaging & Shipping
Each of our machines has a final test time over 72 hours before leaving the factoryEnsure that every detail is done to the extremeOn the premise of ensuring the stability and durability of the machineCreate more efficient and energy-saving products
Company Profile

Guangdong Shimi Intelligent Equipment Co., Ltd. is a manufacturing enterprise specializing in R&D, manufacturing, sales and export of cold chamber, hot chamber, vertical die-casting machines and aluminum, magnesium, copper, lead, zinc alloy die-casting machines and semi-solid die-casting machines and extruders, which are widely used in new energy, aviation, auto parts, kitchenware, clothing, lighting, bathroom, hardware and other industries.
Shimi, has the production of large-scale die-casting machine R & D and manufacturing capabilities, from raw materials, machining, welding, assembly, commissioning, to final inspection, has a complete production and inspection system, each die-casting machine in the final inspection time before leaving the factory more than 72 hours, the annual production capacity of more than 1800 units, the total production value of nearly 200 million, in Zhejiang, Guangdong, Fujian, Hebei and other domestic and overseas regions have a huge customer base, the total number of market sales in the forefront of the industry.
