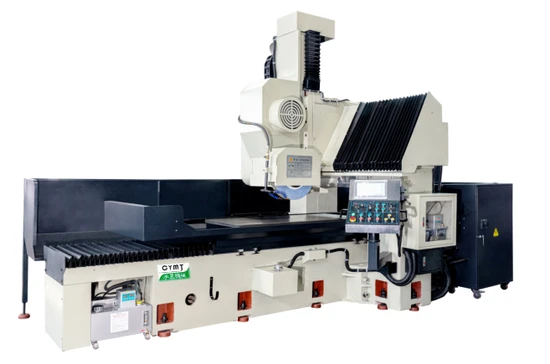

Three Axies 250CNC Advanced Grinding Machine Tool with Permanent Magnet

Product Description

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
At Cheng Yu Machinery Technology Co., Ltd., we are committed to continuous enhancement of our product line. We retain the right to modify specifications, mechanics, and designs at any time, without prior notice or obligation, ensuring that we always stay at the forefront of technology.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd., established in Dongguan City, Guangdong Province, draws from 30 years of Taiwanese expertise in grinding machine manufacturing. Our skilled team is dedicated to excellence and innovation, bringing decades of accumulated technology to the forefront of the industry. The evolution of CNC machine tools continues to accelerate, embracing high-speed, high-precision, composite manufacturing, intelligence, open systems, parallel drive, networking, and eco-friendly innovations. These trends pave the way for the future of CNC machine tools. Dongguan Chengyu Machinery Technology Co., Ltd. excels in producing machine tools and accessories. Our business philosophy is centered on 'technology, innovation, reliability,' and a 'meticulous' quality policy to deliver superior products and service. We thoroughly analyze customer processes, technologies, and quality needs to design and manufacture cutting-edge solutions, achieving high automation, precision, and quality. With a scientific quality management system, top-tier equipment, and exceptional craftsmanship, we continually enhance product applicability and expand the CNC industry's horizons. Chengyu Machinery, in response to market demands, specializes in the innovative design and manufacturing of high-precision CNC surface grinders, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. We also excel in creating industrial robots, automated production lines, and integrated solutions. Below is a glimpse into our esteemed CNC grinding machine series: I. HS Series 618 / 250 / 3060 / 4080 / 40100 (available in both servo and hydraulic types) Processing Capacity: Efficient surface grinding and grooving. Featuring a Patented Hydraulic Control System (for hydraulic models). Functions: Includes grinding programs for flat surfaces and groove cutting. Feed Mode: Options include front, back, left, and right, with each grinding program retaining its feed mode memory. Automatic shutdown upon grinding wheel overload ensures safety and efficiency. II. Available in both servo and hydraulic types. Processing Capacity: Capable of surface grinding, grooving, and combined scheduling tasks. Incorporates a Patented Hydraulic Control System (hydraulic type). Functions: Equipped with diverse grinding programs for surface, groove, sole, side grinding, and more, including unequal distance and depth displacement grinding. Grinding Wheel Dressing: Automatic dressing and compensation based on set rough and fine grinding cycles, allowing seamless operation. Feed Mode: Front, back, left, and right options available, with memory retention for each grinding program's feed mode. Offers both equidistant and non-equidistant grooving capabilities, catering to varied needs. 3. Our four-axis CNC grinding machines are available in both horizontal and vertical types. Processing Types: Facilitates arbitrary equal division and skipping tooth processing. Waist Circle: Input the AB size for precise configuration. Triangle Fillet: Enter the inscribed circle size B and fillet size R for tailored results. Quadrilateral Fillet: Provide side lengths A and B, alongside fillet size R, for custom applications. Eccentric Circle: Input eccentricity, starting, and ending diameters for exact specifications. Circle: To begin your precision work, simply input the starting and ending diameters for flawless execution. Arc: Define your desired arc size and rotation angle effortlessly to achieve perfect curvature and precision. Step Difference & Rotation Profile: Tailor your machining with precise control over step differences and rotation profiles, ensuring impeccable results. Processing Schedule: Save your customized processing schedule as a file, allowing for seamless future retrieval and continued efficiency.
