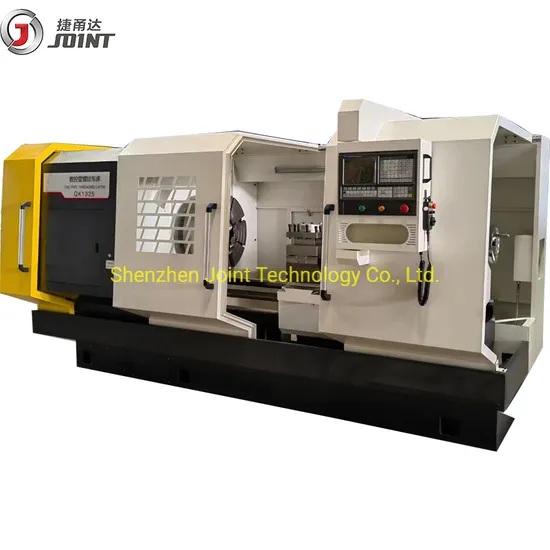

Automatic Pipe Threading CNC Lathe Machine for Oil Country Metal Turning

Product Description

Automatic Pipe Threading CNC Lathe Machine for Oil Country Metal Turning
Pipe Thread Lathe machine widely used in petroleum, industry of drill piple, joints, casting and other parts processing.
It also can be used in chemical industry, coal, geological, etc all kinds of pipe thread processing.

Item	Unit	QK1325
Max dia. swing over bed	mm	800
Max dia. swing over cross slide	mm	540
Max length of workpiece	mm	1500
Width of bed	mm	550
Spindle bore	mm	255
Power of spindle motor	Kw	11
Mode of spindle speed		Two gears Smooth adjustment
Range of spindle speed	r/min	(L): 25-120 (H): 100-350
X/Z axis travel	mm	X:450 / Z:1250
X/Z axis rapid traverse	mm/min	4000
X axis motor speed	r/min	1500
X axis motor torque	N.m	10
X axis motor power	Kw	1.5
Z axis motor speed	r/min	1500
Z axis motor torque	N.m	15
Z axis motor power	Kw	3.8
Tailstock quill diameter	mm	100
Tailstock quill travel	mm	250
Tailstock quill taper		MT5
Turret model		HAK-21240
Tool post type		Vertical 4- station
Turret dimension	mm	240x240
Turret indexing time	s	2.6
Chuck		K11-630 four jaw chuck
Positioning accuracy	mm	0.02
Repositioning accuracy	mm	0.01
Machine size	mm	3700x2000x1800
Machine weight	Kg	6000

Standard Accessories:
1) CNC system: GSK980TC3.
2) Front and rear three-jaw manual chuck.
3) Vertical four-station electric turret.
4) With tailstock.
5) With two gears.
6) Automatic lubrication system.
7) Turning cooling system.
8) The rear bracket.
Professional, precision and special products
Constant craftsman quality
Company Profile Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China. Core strengths 1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base. Special advantages 1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors 1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
