High-Efficiency Fully Automatic Sofa Zig-Zag Coiling Spring Forming Machine Sf-Coil

High-Efficiency Fully Automatic Sofa Zig-Zag Coiling Spring Forming Machine Sf-Coil

US$12,300.00-14,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
SF-COIL
Spring Type
Zigzag Spring
Transport Package
Plywood Pallet
Trademark
XIDENGBAO
Origin
China(Mainland)
HS Code
8479819000
Production Capacity
25 Sets/Month

Product Description

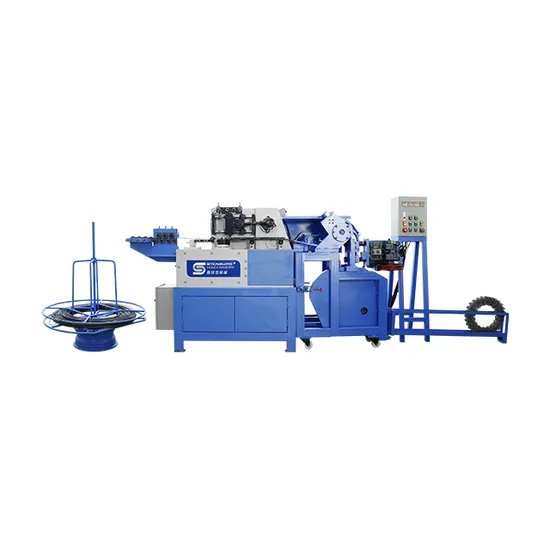

SF-COIL Fully Automatic Sofa Zig-zag Coiling Spring Forming Machine
Technical Specification
Production efficiency
160 single peak/Min,160 double peak/Min
Peak Height
38-70mm
Peak Width
24~36mm
Wire Diameter
Φ2.5~5.0mm
Spring pitch
16-60 mm
Regular spring pitch
20-30 mm
Diameter of spring
3.0-4.0 mm
Power height of S-shape spring
40-50 mm
Cutting type
Adjustable single,double peak
Host motor power
2.2 KW
Zig zag spring forming machine motor power
2.2KW
Zig zag spring coiling device power
0.7KW
Punch motor power
0.37 KW
Punch pressure
1t
Ait Consumption 3-phase 380V 50HZ (can customizable)
Total Power
3KW
Machine weight 1000KG
