Corrosion Exhaust fan/ Fiberglass Exhaust fan/ Fiberglass ventilation fan
Basic Info.
Model NO.
OFS-146SL
Condition
New
Housing Size
18"~72"
Impeller Size
18"-68"
Motor
Aluminium Housing and 100%Cooper Wired
Airflow
12000m3/H~56000m3/H
Power
1/4~5HP
Transport Package
Carton or Wood Plate
Specification
CE SGS AV
Trademark
OFS
Origin
Fujian, China
HS Code
84148090
Production Capacity
86000 Pieces Per Year
Product Description

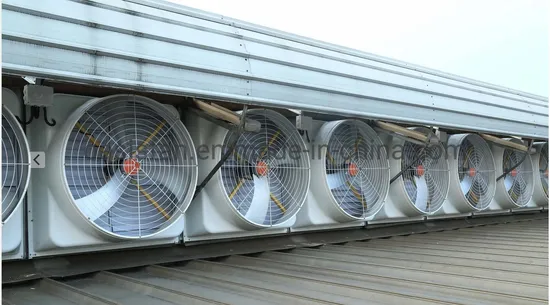

Fiberglass exhaust fan/ Ventilation fanGreat all-purpose exhaust fan for agricultural or industrial applications. The molded fiberglass housing of this fan provides for low maintenance, rust free, corrosion free, easy cleaning and high performance.
Corrosion-resistant, reinforced-fiberglass housing with fiberglass mounts and a heavy cast-aluminum blade.
Dimensions
22", ", 26", 36", 42", or 50" available
Standard
Features
FAN HOUSING - Molded figerglass; extremely smooth inside for low maintenance, rust free, corrosion free, easy cleaning, and high performance. Lifetime Warranty on all housings and fiberglass mounts. FAN BLADES - Aluminium blades (50" fans), light weight, highly efficient, easy cleaning, balanced for smooth operation and extended life of blade and motor. Fiberglass blades are optional . MOTOR - Tough, energy efficient, totally enclosed, automatic thermal protection, prelubricated ball bearings, dual voltage single/variable speed. 2-Year warranty and 3 phase motors available upon request. SHUTTERS - White, PVC aerodynamically designed for smooth operation and less air drag. Improves fan efficiency. Stainless steel corner clips inside of PVC for strong shutter construction. Nylon pivot on each louver. Aluminum shutters available upon request. FLUSH MOUNT DESIGN - Eliminates any protrusions or obstructions in the barn access area SLANT WALL HOUSING - The perfect design for more efficient air flow
| SPECIFICATIONS | ||||||
| ITEM NO. | OFS-076SS | OFS-085SL | OFS-106SL | OFS-128SL | OFS-146SL | OFS-146AT |
| AIRFLOW | 14000m3/h | 19000m3/h | 25000m3/h | 36000m3/h | 45000m3/h | 52000m3/h |
| OUTPUT | 0.39kw | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 1.1kw |
| VOLTAGE/FREQUENCE | 380v 50hz | 380v 50hz | 380v 50hz | 380v 50hz | 380v 50hz | 380v 50hz |
| IMPELLER SIZE | 22" | 26" | 36" | 42" | 50" | 50" |
| IMPELLER MATERIAL | Fiberglass | fiberglass | fiberglass | fiberglass | fiberglass | aluminium |
| BLADES | 3 wings | 6 wings | 6 wings | 6 wings | 6 wings | 3 blades |
| ROTATING SPEED | 960 RPM | 760 RPM | 560 RPM | 560 RPM | 460 RPM | 560 RPM |
| NOISE | ≥ 60db | ≥ 63db | ≥ 65db | ≥ 68db | ≥72db | ≥ 75db |
| WEIGHT | 30kg | 36kg | 42kg | 48 kg | 56kg | 58kg |
| PRODUCT SIZE | 76x76x40cm | 85x85x48cm | 106x106x55cm | 128x128x56cm | 148x148x58cm | 148x148x58cm |
| NOTED: THE REQUESTED MOTORS ARE AVAIABLE TO BE ORDERD | ||||||
