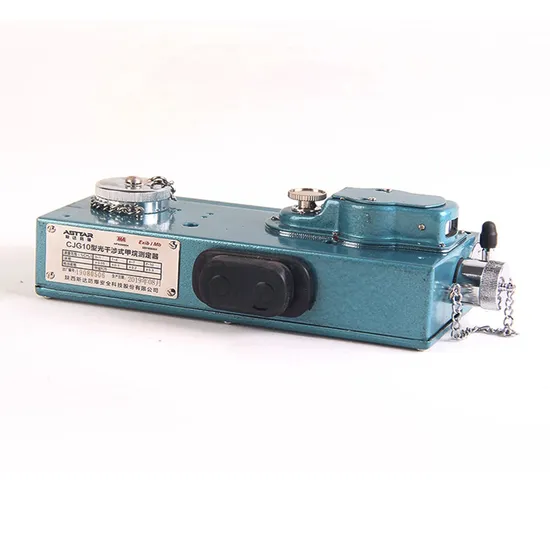

Cjg10 Cjg100 Optical Interference Type Methane Determinator CO2 Detector

Product Description

CJG10, CJG100 Optical Interference Type Methane Detector Product Description
1. Using optical interference principle, it can real-timely detect the methane concentration in ambient air.
2. It has characteristics of accurate measurement, simple operation, convenient to use. Product Parameters

Model Item	Specification
	CJG10				CJG100
Measurement range	(0~10)%CH4				(0~100)%CH4
	0~1	1~4	4~7	7~10	0~10	10~40	40~70	70~100
Intrinsic error	±0.05	±0.1	±0.2	±0.3	±0.5	±1	±2	±3
Minimum division value of eyepiece reticle	0.5%				5%
Division range of micrometer dial	(0-1)%				(0-10)%
Minimum division value of micrometer dial	0.02%				0.2%
Explosion-proof mark	Exib I
Light source (bulb)	2.5V/0.3A
Power Supply	2 ×R20(Zn-Mn)
Dimensions	218×123×65mm
Weight	1.8Kg

Matching information

Standard configuration

Detector, protective cover(leather case), balloon set, absorption tube set, bulb, rubber hose(1500mm),ballpoint pen, thermometer, battery.
