Automatic Edge Banding Machine MDF Woodworking Auto Mini PVC Edge Banding Machine

Product Description

Product Parameters

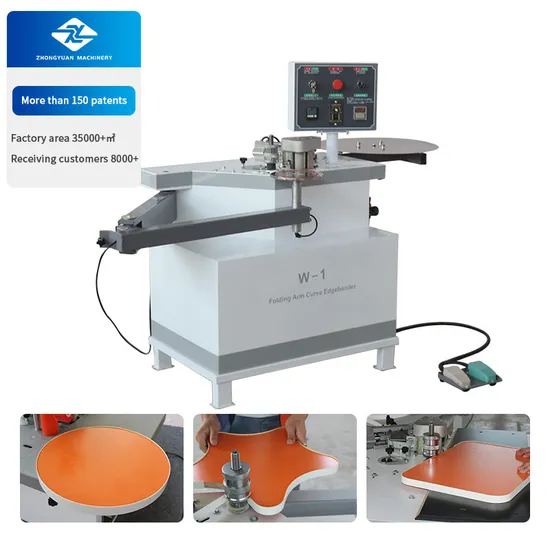

Folding Arm Curve Edge Banding Machine Features : W1: conventional thickness and shape applicable , round 1.6m , square 1.5*1.2m , L-shaped 1.2*1.2m , maximum load capacity 40kg
W2: conventional thickness and shape applicable , round 2.4 meters , square 1.2*2.3 meters , L-shaped 1.2*1.6 meters ,the maximum load of 50 kg
W3 : new automatic lue cleaning , hot air set , increase the auxiliary pressure wheel function , the regular thickness and shape for the round 2.4m square 1.2*2.4m , L-shaped 1.2*1.6m or so , the maximum load 50 kg

Model	W1	W2	W3
Board size	round 1.6m, square 1.5*1.2m, L-shaped 1.2*1.2m Maximum load capacity 40kg	round 2.4m, square 1.2*2.3m, L-shaped 1.2*1.6m Maximum load capacity 50kg	Round 2.4m Square 1.2*2.4m, L-shaped 1.2*1.6m Maximum load capacity 50kg
Diameter ofsuction cup	200 mm	300 mm	300 mm
Auxiliarypressure roller	-	-	√
Automatic cleaning	-	-	√
Hot air device	-	-	√
Total power	1400w	1400w	3400w
Edge banding speed	0-18cm/s	0-18cm/s	0-18cm/s
Glue pot capacity	1200ml	1200ml	1200ml
Length ofstacking arm	1320 (with 200mm suction cup)	1860 (with 300mm suction cup)	1860 (with 300mm suction cup)
Net weight	88KG	152KG	157KG
Machine size	1420*1400*1210mm	1960*1700*1220mm	1960*1700*1250mm

Detailed Photos
Product Application
Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
