Vm-420 3 Axis CNC Vertical Milling Machine Machining Center

Product Description

VM-420 3 Axis CNC Vertical Milling Machine Machining Center
Introduction
1.The main structure body is analyzed by finite element. The machine base, column, spindle box, cross slide table and work table are made of high quality precision casting. After secondary aging treatment, the stability of long-term processing can be ensured.
2.The VM-420 spindle is equipped with a Taiwan spindle unit with a maximum speed of 8000 rpm.
3.X Y two axes adopt imported wire rail, Z axis adopts hard rail, which increases support stiffness and machining precision. The triaxial lead screws are pre-stretched to prevent heat distortion during high-speed operation and ensure accuracy.
4.Adopt Taiwan precision screw, Taiwan surplus tin lock nut, screw bearing adopts Japan NSK bearing, with flexible coupling directly connected, small backlash, sensitive transmission, high precision and so on.
5.Each transmission shaft spacing adopts high-precision auroral interferometer to perform fine compensation of pitch error and gap error, which makes the positioning accuracy of each axis more accurate, and is more suitable for machining high-precision parts.
6.The electric cabinet is equipped with air conditioning system and exchanger (optional air conditioning). The cooling capacity ensures that the machine works normally during the high temperature season and prolongs the life of the machine.
7.Lubricate the moving parts such as guide rails and lead screws with automatic quantitative gap centralized lubrication device.
8.The front sliding door and the door glass are made of thick clamped tempered glass to improve safety.

Feature
The VM-420 machine is suitable for precision machining of complex parts such as plates, discs, housings, molds, etc. Machine tools with automatic tool change CNC, fully enclosed protective cover, automatic lubrication system, cooling system, rear chip removal device, parts One-time clamping can complete precision machining of milling, boring, drilling, expanding, reaming, tapping and other processes, and optional fourth-axis machining.

Tool
Large-capacity tool magazine for loading multiple tools at once. In the one-time processing of a variety of workpieces, there is no need to fill the knife during processing, which greatly saves cutting time. Disc-type tool magazine for faster tool change. Reduced non-cutting time and greatly increased productivity.
Operating Convenient

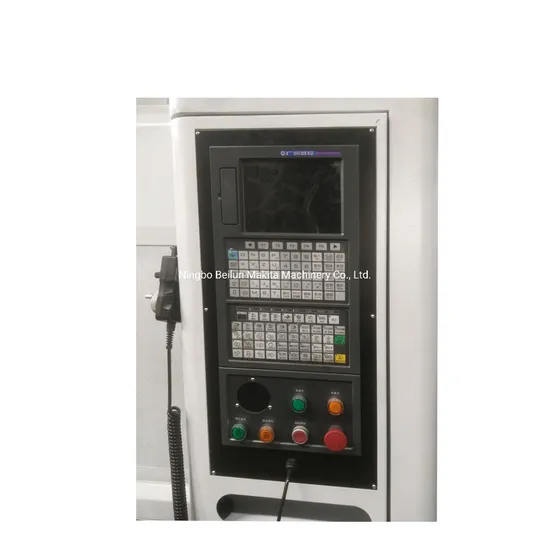

The new control panel combines a user-friendly operating keyboard. Rotating the embedded operation console from multiple angles brings convenience to the operator.
Specification

Item	Parameter	VM420
Travel	X axis	420mm
	Y axis	300mm
	Z axis	400mm
	Distance from spindle end to table	125-525mm
	Distance from spindle center to column	410mm
Guide form	X/Y/Z axis	linear rail/linear rail/hard rail
Work table	area	650*380mm
	max load	200kg
	T slot (No*Width)	3*14mm
Spindle	speed	8000rpm
	taper	BT-40
	power	3.7/5.5kw
Three axis feed	X, Y axis rapid feed	30/30mm/min
	Z axis rapid feed	24mm/min
	triaxial cutting feed	1-5000mm/min
	X, Y axis motor power	1.2/1.2kw
	Z axis motor power	1.2kw
Controller	Optional	GSK218M/SYNTEC
Pressure		≥20.3/ cubic metres
Accuracy	positioning accuracy	±0.008mm
	repeat positioning accuracy	±0.004mm
Weight Size	Machine weight	2800/2600kg
	Outline dimension(L*W*H)	2115*1800*1770mm

Our Company

Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
