New CNC Plasma Cutting Metal Steel Machine / Portable Plasma Cutter / 1530 CNC Plasma

Product Description

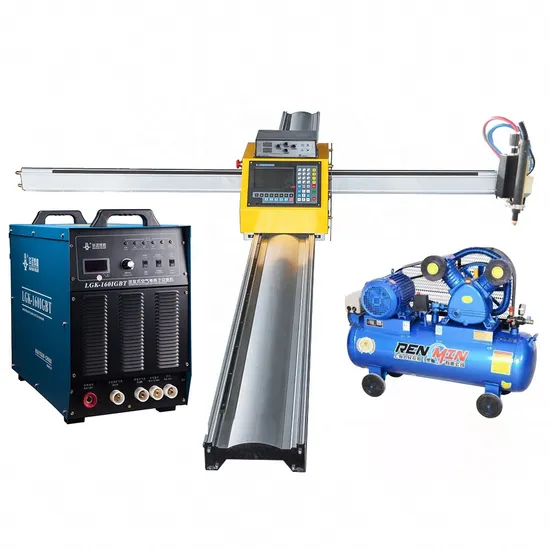

High Definition CNC Plasma Cutter for Sheet Metal CNC Plasma cutting machine
This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Feature
1. Effective Cutting length:2000-6000mm can be customized according to user requirements
2.Cutting graphics:programmable cutting line and arc constitute any plane shape parts
3. Language:Support 19 languages
Specification

Technical Specification
Model	JX-1530
Effective cutting range(mm)	1500×3000mm
Cutting speed (mm/min)	50-4000(max. 4000)
Input power source	380v±10% VAC,50/60HZ,three phase
Input Machine body	220V±10%V AC, 50/60HZ, Single phase
Flame Cutting thickness (mm)	6-80 (Oxygen + acetylene or propane)
Plasma cutting thickness(mm)	0.5-30mm (According to your plasma power source)
Torch height controller	F1621
Flame cutting gas	Oxygen+ propane or acetylene
Plasma cutting gas	compressed air
Cutting torch	One piece flame cutting torch and one plasma cutting torch with plasma power source
CNC controller system	F2100B
Motor	Leadshine Stepper motor and drive
Operation precision	±0.2mm
Guide length ×guide width ×guide thickness (mm)	3500×273×60
Nesting software	StarCam
Gas pressure (Mpa)	0.5
Cutting tool Conversion Kit	Oxygen(flame) and plasma cutting machine spare parts can change easily.
