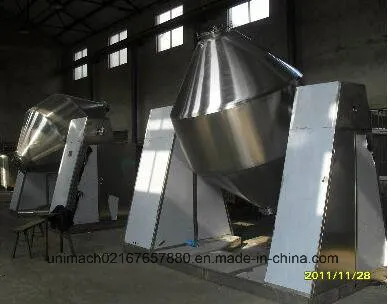

Rotary Double Cone Powder Blender Mixer Machine (SZH)
| US$5,000.00-40,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SZH
Application
Powder, Powder
Application Area
Pharmaceutical
Certification
CE
Condition
New
Stirring Type
Diving
Working
Rotary
Dimensions
1250*450*1060(mm)
Total Volume
30L
Mixing Time
8-15min
Name
Rotary Double Cone Powder Blender
Mixer Type
Powder Mixer
Layout Type
Horizontal
Warranty
1
Operating type
Electrical
Transport Package
Packed in Export Wooden Case
Specification
1250*450*1060(mm)
Trademark
UNIMACH
Origin
China
Production Capacity
200 Sets/Year
Packaging & Delivery
Package Size
1.25cm * 0.45cm * 1.06cm
Package Gross Weight
160.000kg
Product Description
Rotary Double Cone powder Blender Mixer machine(SZH)ApplicationsIt is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building materials and other industries.
This mixer/blender/agitator is used for mixing/blending/agitating some powders/granules together, this mixer/blender/agitator is applicable for pharmaceutical, chemical, foodstuff, feed, pigment and electornic trades etc. It has remarkable effect in mixing powders and particles with relatively good fluidity.
Features
Through the vacuum conveyor the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.
It's energy saving, easy for operation, the labor tensity is low, and the working efficiency is high.
| Model | Total Volume | Loading Volume/batch | Mixing Time | Barrel Speed | Motor | Weight | Overall dimension (L × W × H) |
| SZH-30 | 30L | 15L | 8-15min | 15(rpm) | 0.37kw | 160kg | 1250*450*1060(mm) |
| SZH-100 | 100L | 50L | 8-15min | 15(rpm) | 1.1kw | 220kg | 1620*500*1480(mm) |
| SZH-300 | 300L | 150L | 8-15min | 15(rpm) | 1.1kw | 280kg | 1800*600*1850(mm) |
| SZH-500 | 500L | 250L | 8-15min | 15(rpm) | 3kw | 320kg | 1900*650*1850(mm) |
| SZH-1000 | 1000L | 500L | 8-15min | 12(rpm) | 4kw | 550kg | 2500*800*2050(mm) |
| SZH-1500 | 1500L | 750L | 8-15min | 12(rpm) | 5.5kw | 950kg | 2850*1050*2450(mm) |
| SZH-2500 | 2500L | 1250L | 8-15min | 12(rpm) | 11kw | 1200kg | 3400*1100*3100(mm) |
| SZH-4000 | 4000L | 2000L | 8-15min | 10(rpm) | 15kw | 1880kg | 3200*1300*3600(mm) |
| SZH-6000 | 6000L | 3000L | 8-15min | 10(rpm) | 18.5kw | 2350kg | 3500*1300*3800(mm) |
| SZH-8000 | 8000L | 4000L | 8-15min | 10(rpm) | 22kw | 3200kg | 5500*1300*4380(mm |
