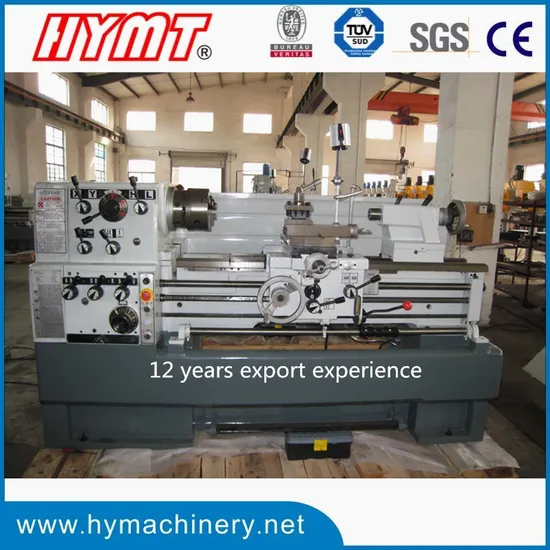

C6241X1500 Universal horizontal turning lathe Machine

Product Description

photoes for our workshop:
Main functions:
1) The guide way and all gears in the headstock are hardened and precision ground.2) The spindle system is high rigidity and accuracy.3) The machines have powerful headstock gear train, high rotating accuracy and smooth running
with low noise. 4) An overload safety device is provided on the apron. 5) Pedal or electromagnetic braking device. 6) Tolerance test certificate, test flow chart included
Main specifications:

Specification		C6241						C6246
Swing over bed		410mm(16")						460mm(18")
Swing over cross slide		220mm(8-13/16")						270mm(10-3/4")
Swing in gap		640mm(25-1/8")						690mm(27-1/8")
Distance between centers		1000mm (40")		1500mm (60")			2000mm (80")	1000mm (40")	1500mm (60")	2000mm (80")
Valid length of gap		165mm(6-1/2")
Width of bed		300mm(11-13/16")
Spindle nose		D1-6
Spindle bore		58mm(2-1/4")
Taper of spindle bore		No.6 Morse
Range of spindle speed		12 changes, 25~2000r/min
Max.travel of top slide		128mm(5")
Max.travel of cross slide		285mm(11-1/4")
Max.section of tool		25×25mm(1"×1")
Pitch thread of leadscrew		6mm or 4T.P.I.
Longitudinal feeds range		42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)
Cross feeds range		42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)
Metric threads range		41 kinds, 0.1~14mm
Inch threads range		60 kinds, 2~112T.P.I.
Diametrical pitches range		50 kinds, 4~112DP
Module pitches range		34 kinds, 0.1~7MP
Dia. of tailstock sleeve	60mm(2-5/16")
Travel of tailstock sleeve	128mm(5")
Taper of tailstock sleeve	No.4 Morse
Power of main motor		5.5kW(7.5HP) 3PH
Power of coolant pump			0.1kW(1/8HP) 3PH
Standard accessories
3 Jaw chuck and adapter						Wrenches
Sleeve and center						Oil gun
4 Jaw chuck and adapter						Steady rest
Face plates						Follow rest
Drive plate						Center
Special accessories
Quick change tool post					Live center
Taper turning attachment					Digital readout

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
