Cw Max Fiber Laser Source 1000W 1500W 2000W 3000W 4000W

Product Description

Product Description

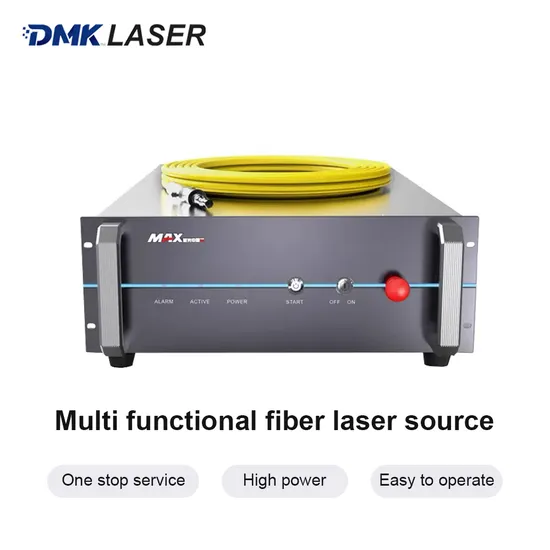

MAX single-mode quasi-CW fiber laser source is a high-efficiency, high-reliability, maintenance-free, high-power laser developed by MAX. It is water-cooled and has a wavelength range of 1080 nm. Product Parameters

Model	MD-1000W	MD-1500W	MD-2000W	MD-3000W
Output power (W)	1000	1500	2000	3000
Operating mode	Continuous / Pulse
Power adjustment range (%)	10~100	10~100	10~100	10~100
Center wavelength (nm)	920(910~930)
Beam quality BPP	25~28	25~28	30~33	30~33
Fiber optic cable length (m)	15 (can be customized)
Output fiber core diameter (μm)	300@1000W	400@1500W	400@2000W	500@3000W
Overall size (mm)	800×482.6×192 (W×D×H)		950×482.6×193.2 (W×D×H)
Machine weight (kg)	50±3		68±3

Application
The function of the handheld laser welding head is to directly transfer laser energy to the workpiece, causing the surface of the workpiece to quickly melt and form a molten pool through rapid heat conduction. The advantages of laser welding are fast speed, high precision, small heat-affected zone, deep melting, fast cooling, and high joint quality. The advantages of the handheld laser welding head are its flexible operation, allowing it to be used in narrow workspaces, and it's suitable for welding complex parts and shapes.
Company Profile

FAQ
Q: What are the applications of a fiber laser generator?
A: Fiber laser generators are used in a wide range of applications, including welding, cutting, marking, engraving, drilling, and 3D printing. They are also used in medical and scientific research, as well as in aerospace applications.

Q: What factors should I consider when choosing a fiber laser generator?
A: When choosing a fiber laser generator, you should consider factors such as power output, beam quality, wavelength, pulse duration, and cooling requirements. You should also consider the specific application for which the generator will be used and any necessary safety features.

Q: How do I maintain and repair a fiber laser generator?
A: Fiber laser generators require regular maintenance and occasional repairs to ensure optimal performance. Maintenance tasks may include cleaning the optics, replacing the laser diode, or checking the cooling system. Repairs may involve replacing damaged or worn components, such as the laser head or power supply. It is important to follow the manufacturer's guidelines for maintenance and repair to ensure safe and effective operation of the generator.

Q: How do I ensure safety when using a fiber laser generator?
A: Safety should always be a top priority when using a fiber laser generator. You should wear appropriate protective gear, such as safety glasses, and follow all safety procedures outlined by the manufacturer. You should also be aware of potential hazards, such as electrical shock or fire, and take appropriate precautions to minimize risk. Finally, you should ensure that the generator is properly installed and maintained to minimize the risk of accidents or equipment failure.
