Solar Tracking Reducer Slewing Drive Large Output Torque Sun Tracker

Product Description

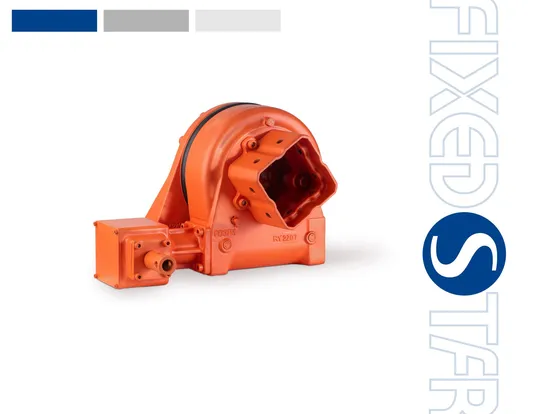

Products Description (1) FD...V Series Compact design for easy installation.
Features a built-in mechanical limiter for improved safety.
Utilizes a double enveloped worm profile for better meshing of worm and gear teeth, delivering reliable performance under both dynamic and static loads.
Best choice for single-axis tracking systems driven from a single point.

Housing/Wheel	Cast lron Grade QT600	Efficiency	35-40% depending on Ratios
Worm Shaft	20CrMnTi	Tracking Precision	0..17° to 0.05°
Temperature	-35-70°C	Rated Output Speed	<0.1RPM
IP Class	IP65

	Smallest Size	Largest Size
Rated Output Torque	1KNm	8KNm
Output Torque (Max)	1.3KNm	10.3KNm
Holding Torque	8KNm	50KNm
Broken Torque	6.2KNm	20KNm

(2) FD...M Series FD-M series is protected by 4 Invention Patents, 6 Design Patents and 10+ Utility Model Patents in China.
The motor is integrated with the center gearbox, ensuring that both side gearboxes receive symmetrical output. This fundamentally mitigates the risk of shaft breakage due to unbalanced power output. The introduction of a direct drive system, as opposed to universal joints, not only reduces costs but also enhances transmission efficiency and stability.
The external transmission shaft rotates smoothly with the main beam, without any interference from the purlin.
Addressing the drooping issue can be achieved by adding additional support points to the main beam. Customers also have the option of using a universal joint if necessary (3) FH Series High Precision Slewing Drives are commonly used in Photothermal Power Generation, where they play a crucial role in collecting heat through the movement of heliostats. FH slewing drives boast impressive weather resistance, superior sealing performance, and excellent anti-corrosion capabilities.
The precision grade can be as low as ≤ 0.05 degree with tolerance level ≤ 0.4 milliradians. Thanks to its innovative double-lead worm gear structure, the precision can be fine-tuned even after extended periods of use. Details Images Fixedstar Slewing Drive Pictures Fixedstar Main Projects Packing & Delivery Packaging Pictures of Worm Gear Reduce and Helical Geared Motor

Inner Packing: PP bag with carton;
Outer Packing: Carton boxes and wooden cases;
Leadtime: 20-30 days upon order confirm. About Us Welcome to Fixedstar Group, China's leading gearbox manufacturer since 1976. Our journey, spanning over four decades, has established us as a benchmark of excellence in the power transmission industry. We proudly made history in the 1980s by exporting the first China-made reducer and have since maintained our status as China's top gearbox exporter.Today, we proudly export 70% of our products to more than 40 countries, including key markets like Italy, Germany, the USA, Spain, Brazil, Argentina, Turkey, and India. Our extensive product range includes worm gear reducers, helical gearboxes, shaft-mounted reducers, helical bevel gearboxes, and slewing drives.These products are vital across various sectors, from industrial production equipment, power, and mining to metallurgy, agriculture, construction, and marine, as well as in the burgeoning clean energy sector. Our team of experts, among the world's best, upholds the highest standards for both standard and OEM products. Driven by innovation and cutting-edge technology, we prioritize quality and our customers' needs. Our state-of-the-art facilities, equipped with the latest machinery and a team of seasoned professionals, ensure consistent quality and impressive daily output. We're proud to produce 4,000 units daily, totaling over 1.2 million units annually. We cordially invite you to visit us and witness first hand why Fixedstar Group is the gem of China's gearbox manufacturing. Seeing is believing, and we eagerly anticipate demonstrating our expertise and craftsmanship. Join us in driving the future forward.
