Universal tool milling machine XL8140 bench milling machine

Product Description

Product Description
Universal Tool Milling Machine XL8140 Main Features:
1. Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
2. Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3. Electronic handwheel adopted on X Y Z 3-axis ,easy operating.
4. Automatic oil lubrication, cooling system, chip collector tray, CE Electric are standard.

Specification	XL8140
Table size	800x400mm
Table travel (X/Y/Z)	500/400/400mm
Table feed(X/Y/Z)	10-1000mm/min
T-slots(work table)	6-14x63mm
T-slots(vertical table)	3-14x63mm
Spindle taper	NT40
Spindle speed range	(2 steps)40-2000rpm
3 to feed Ac servo motor torque	7.7/7.7/10N.m
Table rapid speed	1200mm/min
Max loading capacity	200kg
Main motor power	3.7kw
Vertical table dimensions	1020x225mm
Quill stroke	60mm
Overall size	1500x1700x1800mm
N.w	1550kg

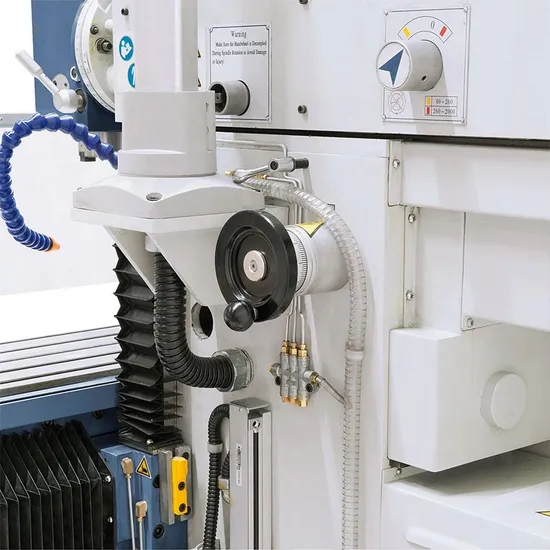

Detailed Images

Company Profile

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
