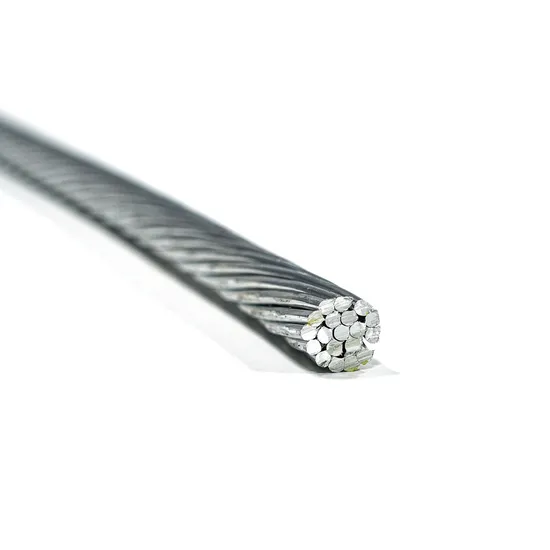

AAC AAAC ACSR Bare Aluminum Conductor

AAC AAAC ACSR Bare Aluminum Conductor

US$8.00-20.00 1,000 Meters (MOQ)

Basic Info.

Model NO.
AAAC Conductor
Sheath Material
None
Wire Core Material
Aluminum
Certification
ISO, CCC, CE
Model
AAAC Conductor
Brand
Panghao
Transport Package
Wooden Drums
Trademark
PangHao
Origin
Ningjin

Product Description

The twisted wire is realized by rotating the twisted single wire around the twisted wire axis at equal angular speed and moving the twisted wire forward at uniform speed. It is suitable for the occasions where the working frequency is high and the skin effect and proximity effect loss of single strand wire are too large. The use of stranded wire can reduce the operating temperature, compared with the same cross-sectional area of single strand wire, stranded wire has higher mechanical, flexibility.
Aluminum stranded wire: Advantages: light conductor weight, good electrical conductivity.
Application: Used in the distribution wire of overhead power line with less force.
All Aluminium Alloy Conductors ASTM B 399
AREA Stranding and wire diameter Approx. overall diameter Weight Nominal Breaking Load Nom. DC resistance at 20 Deg.
Nominal Actual
AWGorMCM (mm2) (mm) (mm) (kg/km) (kN) (ohm/km)
6 13.3 7/1.554 4.67 37 4.22 2.5199
4 21.15 1/1.961 5.89 58 6.71 1.5824
2 33.63 7/2.474 7.42 93 10.68 0.9942
1/0 53.48 7/3.119 9.36 148 16.97 0.6256
2/0 67.42 7/3.503 10.51 186 20.52 0.4959
3/0 85.03 7/3.932 11.8 234 25.86 0.3936
4/0 107.23 7/4.417 13.26 296 32.63 0.3119
250 126.66 19/2.913 14.57 349 38.93 0.2642
300 152.1 19/63.193 15.97 419 46.77 0.2199
350 177.35 19/3.447 17.24 489 52.25 0.1887
400 202.71 19/3.686 18.43 559 59.74 0.1650
450 228 19/3.909 19.55 629 67.19 0.1467
500 253.35 19/4.120 20.6 698 74.64 0.1321
550 278.6 37/3.096 21.67 768 83.80 0.1202
600 303.8 37/3.233 22.63 838 91.38 0.1102
650 329.25 37/3.366 23.56 908 97.94 0.1016
700 354.55 37/3.493 24.45 978 102.20 0.0944
750 380.2 37/3.617 25.32 1049 109.60 0.0880
800 405.15 37/3.734 26.14 1117 116.80 0.0826
900 456.16 37/3.962 27.73 1258 131.50 0.0733
1000 506.71 37/4.176 29.23 1399 146.10 0.0660
