Pharmaceutical Grade Ultrafine Material Impact Mill Pin Mill Particle Size D50: 10-45um

Product Description

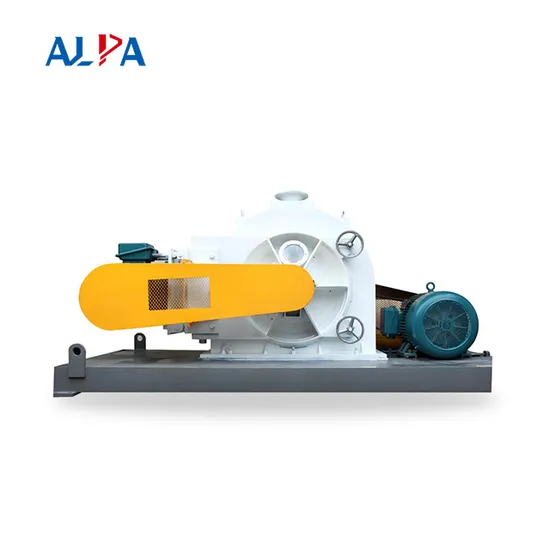

CUM-P Pin Mill Single Rotor / Multiple RotorWidely used in chemical, inorganic salt, medicine, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries. Features and Advantages
* Available D50:10-45μm.
* No sieve, smooth discharge, high capacity and low operation cost.
* High line speed, finer particle size.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Different installation combinations, applicable to different process requirements
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* Single or double drive, if upgraded to dual power, reaching 200m/s or more line speed, to obtain the maximum grinding force
* The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
* Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
* Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
* High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials. Working Principle A pin mill(pin mill grinding,micro pin mill,fine pin mill,pin mill grinding, pin mill Crush, pin mill pulverizer,pin grinding
equipment) is a mill machine that comminutes materials by the action of pins that repeatedly move past each other.
Much like a kitchen blender, it breaks up substances through repeated impact.
The mill is a type of vertical shaft impactor mill and consists of two rotating discs with pins embedded on one face.
The discs are arrayed parallel to each other so that the pins of one disk face those of the other. The substance to be homogenized is fed into the space between the disks and either one or both disks are rotated at high speeds.
Pin mills can be used on both dry substances and liquid suspensions.Pin mills are commonly use in the manufacture of
pharmaceuticals, as they can achieve particle sizes as low as a few micrometers.
The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.
At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.
The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.
ALPA is China's largest pin mill manufacturer and supplier. We have an advanced factory that offers unique processes and designs. Technical Parameters Parameter / Model 160 260 360 500 630 800 1000

Diameter of coarse grinding disc (mm)	180	270	380	580	640	750	1000
Rotating speed of coarse grinding disc (r/min)	9000	6000	4680	2480	2300	2150	1800
Linear speed of coarse grinding disc (m/s)	84.8	84.8	93.1	75.3	77.1	84.4	94.2
Ground power (kW)	4	7.5	22	37	45	55	75
Dual power (kW)			22+30		2x55
Diameter of micronized grinding disc (mm)	160	260	360	520	630	730	1000
Micro powder type speed (r/min)	12000	7500	5550	3850	3200	2800	2050
Linear speed of micro-powder grinding disc (m/s)	100.5	102.1	104.6	104.8	105.6	107.0	107.3
Micro powder type power (kW)	4	7.5	22	37	55	75	90
Air volume (m³/h)(max)	360	1000	2400	3200	5700	7500	10000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
