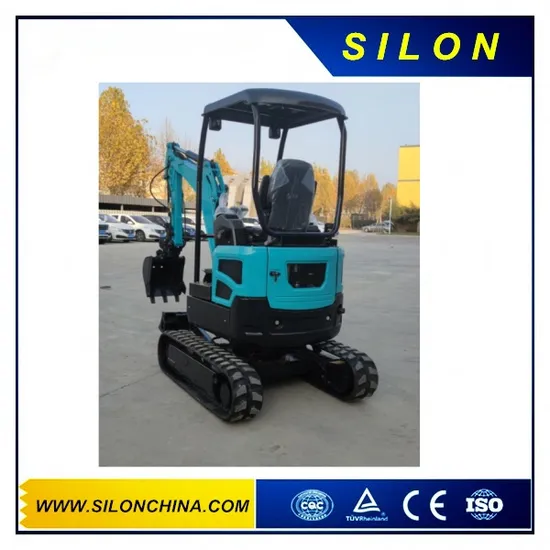

2t Mini Digger with Kubota Engine
| US$16,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
SL20
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
2000kg
Standard Bucket Capacity
0.07m3
Engine Model
Kubota /D1105
Overall Dimensions
3555mm*1300mm*2290mm
Rated Power/Speed
14kw2200r/Min
Crawer Width
230mm
Carrier Roller (Each Side)
1
Support Roller ( Each Side)
4
Height of Blade
350mm
Maximum Digging Height
3700mm
Maximum Dumping Height
2440mm
Maximum Digging Depth
2400mm
Maximum Vertical Digging Depth
2025mm
Maximum Digging Distance(Working Radius)
4040mm
Minimum Swing Radius
1610mm
Transport Package
Nude
Specification
CE/ ROHS/SGS/GMP
Trademark
SILON
Origin
Luoyang, China
HS Code
84295212
Production Capacity
500 Units/Month
Product Description
Product DescriptionThe crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system, with steel track, with broken pipeline system , the machine can changed track from steel to rubber. Can telescoping the track frame.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Product Parameters
| ENGINE | |
| Emission Standard | Euro 5 /EPA4 |
| Make | KUBOTA |
| Model | D1105 |
| Power /Rotation speed | 14kw |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 2.5/3.5km/h |
| Width of track shoe | 230mm |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990/1300mm*2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm/1070mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
